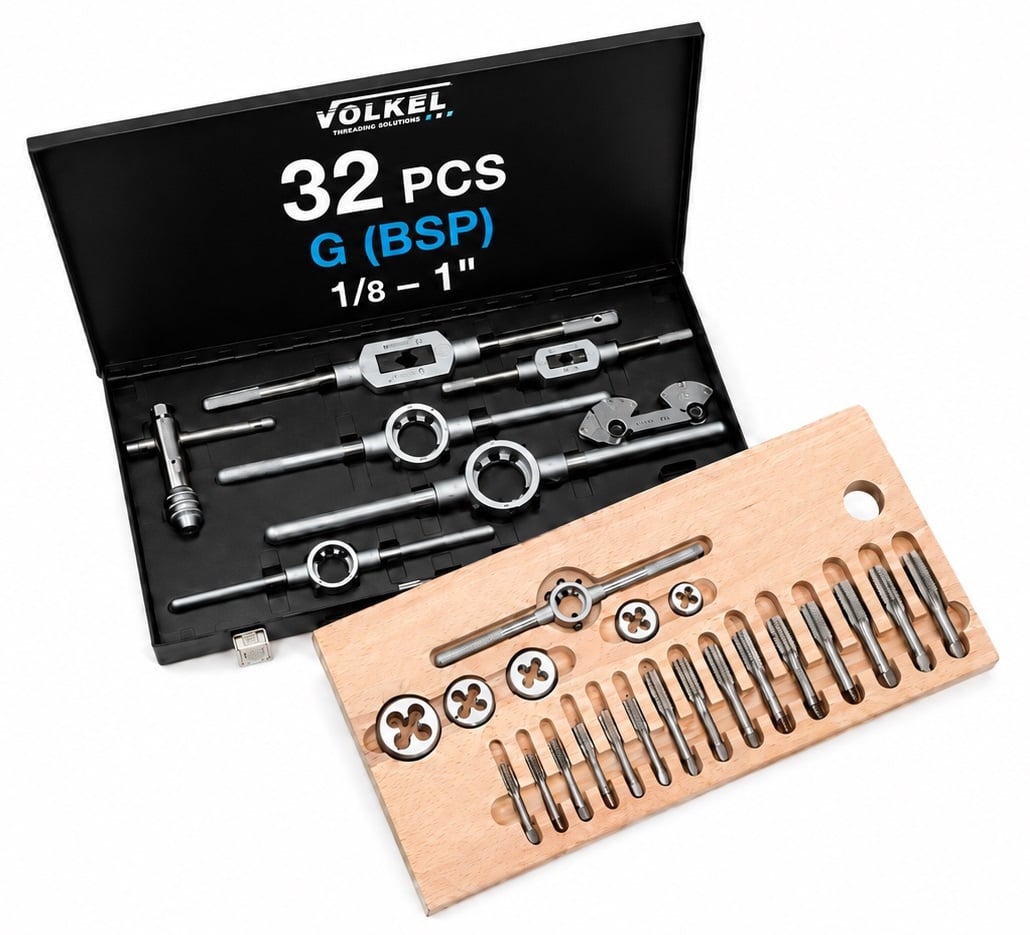

VÖLKEL 48021 G (BSP) Hand Tap and Die Set 32 pcs. 1/8 – 1 inch

VÖLKEL 48021 Hand Tap and Die Set G (BSP) 1/8 – 1", 32 pcs. is a thread cutting tool set for cylindrical G (BSP) pipe threads designed for producing, reworking and repairing internal and external threads in mechanical engineering, workshops and maintenance applications.

• Version: 32-piece set in metal case
• Thread range: G (BSP) 1/8" to 1"
• Tool material: HSS-G / HSS

Scope of delivery

• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1/8 (25312)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1/4 (25314)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 3/8 (25316)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1/2 (25318)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 5/8 (25320)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 3/4 (25322)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 7/8 (25324)
• 1x HSS-G Hand taps, set of 2 pcs. - G (BSP) 1" (25326)
• 1x HSS Round die - G (BSP) 1/8 (25412)
• 1x HSS Round die - G (BSP) 1/4 (25414)
• 1x HSS Round die - G (BSP) 3/8 (25416)
• 1x HSS Round die - G (BSP) 1/2 (25418)
• 1x HSS Round die - G (BSP) 5/8 (25420)
• 1x HSS Round die - G (BSP) 3/4 (25422)
• 1x HSS Round die - G (BSP) 7/8 (25424)
• 1x HSS Round die - G (BSP) 1" (25426)
• 1x Adjustable tap wrench, zinc die-cast No. 1 (13010)
• 1x Adjustable tap wrench, zinc die-cast No. 3 (13030)
• 1x Adjustable tap wrench, zinc die-cast No. 5 (13050)
• 1x Die stock, zinc die-cast 30 x 11 mm (15005)
• 1x Die stock, zinc die-cast 38 x 10 mm (15006)
• 1x Die stock, zinc die-cast 45 x 14 mm (15008)
• 1x Die stock, zinc die-cast 55 x 16 mm (15010)
• 1x Die stock, zinc die-cast 65 x 18 mm (15012)

Features

• 32-piece complete set for internal and external threads
• For cylindrical G (BSP) pipe threads according to DIN ISO 228
• DIN version
• HSS-G hand taps
• HSS round dies
• Suitable for through and blind holes
• Clearly arranged storage in a robust metal case
• All threading tools and accessories can be ordered separately

Technical Data

Applications

• For general workshop, service and maintenance use
• For cutting, recutting and cleaning internal and external threads
• For repair and service work on matching pipe-thread connections
• For manual use with cylindrical G pipe threads
• For organized storage of frequently required threading tools and holders

Application Notes

• Check the thread type, nominal size, material and tool holder before use
• Clean, deburr and securely clamp the workpiece before threading
• Start the tool squarely and guide it evenly during machining
• Use suitable cutting fluid and remove chips regularly
• Use the matching tap wrenches and die stocks for controlled operation
• Clean the tools after use and store them dry in the case
