VÖLKEL 49251 Hand taps and round dies HSSE (set of 52 pcs.) M3 - M20

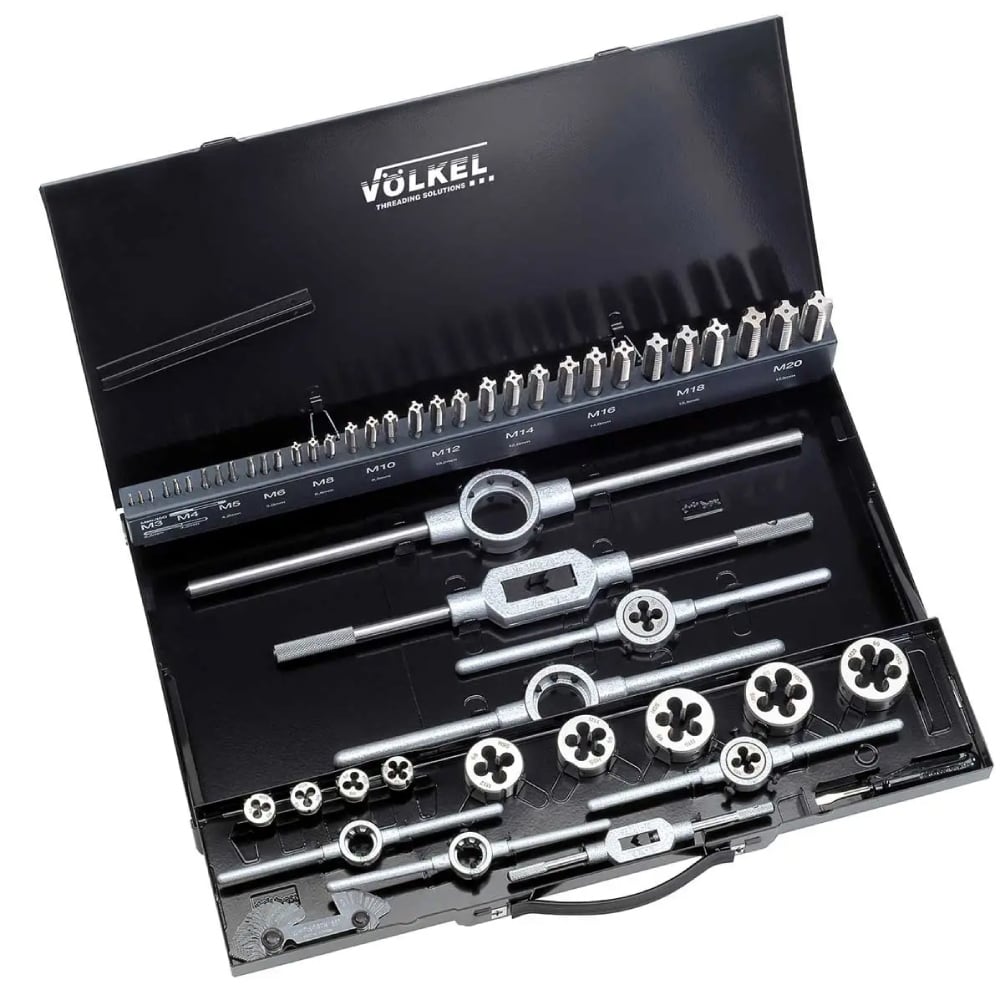

VÖLKEL 49251 Hand Taps and Round Dies HSSE Set, 52 pcs. is a thread cutting tool set for metric ISO threads designed for manual production, reworking and repair of internal and external threads from M3 to M20 in workshop, service and maintenance applications.

• Version: 52-piece set in Drilbox / metal tool case
• Thread range: M3 to M20
• Tool material: HSSE

Scope of delivery

• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M3 x 0.5 (57326)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M4 x 0.7 (57330)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M5 x 0.8 (57334)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M6 x 1.0 (57338)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M8 x 1.25 (57342)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M10 x 1.5 (57346)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M12 x 1.75 (57350)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M14 x 2.0 (57354)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M16 x 2.0 (57358)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M18 x 2.5 (57362)
• 1x Hand tap set of 3 pcs. DIN 352 HSSE - M20 x 2.5 (57366)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M3 x 0.5 (57426)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M4 x 0.7 (57430)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M5 x 0.8 (57434)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M6 x 1.0 (57438)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M8 x 1.25 (57442)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M10 x 1.5 (57446)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M12 x 1.75 (57450)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M14 x 2.0 (57454)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M16 x 2.0 (57458)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M18 x 2.5 (57462)
• 1x Round die gun-nosed, Form B, DIN 223 / DIN EN 22568 HSSE - M20 x 2.5 (57466)
• 1x Adjustable tap wrench DIN 1814, zinc die cast No. 1 (13010)
• 1x Adjustable tap wrench DIN 1814, zinc die cast No. 3 (13030)
• 1x Die stock DIN 225 / DIN EN 22568, zinc die cast 20 x 5 mm (15002)
• 1x Die stock DIN 225 / DIN EN 22568, zinc die cast 20 x 7 mm (15003)
• 1x Die stock DIN 225 / DIN EN 22568, zinc die cast 25 x 9 mm (15004)
• 1x Die stock DIN 225 / DIN EN 22568, zinc die cast 30 x 11 mm (15005)
• 1x Die stock DIN 225 / DIN EN 22568, zinc die cast 38 x 14 mm (15007)
• 1x Die stock DIN 225 / DIN EN 22568, zinc die cast 45 x 18 mm (15009)

Features

• 52-piece complete set for internal and external threads
• For metric ISO threads from M3 to M20
• HSSE hand taps and HSSE round dies
• Hand tap sets according to DIN 352
• Round dies according to DIN 223 / DIN EN 22568
• Round dies in Form B, gun-nosed / solid version
• Includes adjustable tap wrenches and die stocks
• Clearly arranged storage in Drilbox / metal tool case
• Suitable for recurring workshop, service and maintenance tasks

Technical data

Applications

• For manual cutting, recutting and repairing metric ISO threads
• For internal threads with 3-piece hand tap sets
• For external threads with round dies
• For workshop production, service, maintenance and general mechanical engineering

Application notes

• The 3-piece hand tap set consists of rougher, intermediate and finisher taps.
• No. 1 rougher: 6-8 threads lead
• No. 2 intermediate: 4-5 threads lead
• No. 3 finisher: 2-3 threads lead
• Select the correct tool according to thread size and machining task.
• Use a suitable cutting oil or cutting fluid and remove chips regularly.
• After machining, clean the threads and tools and store the components protected in the case.
