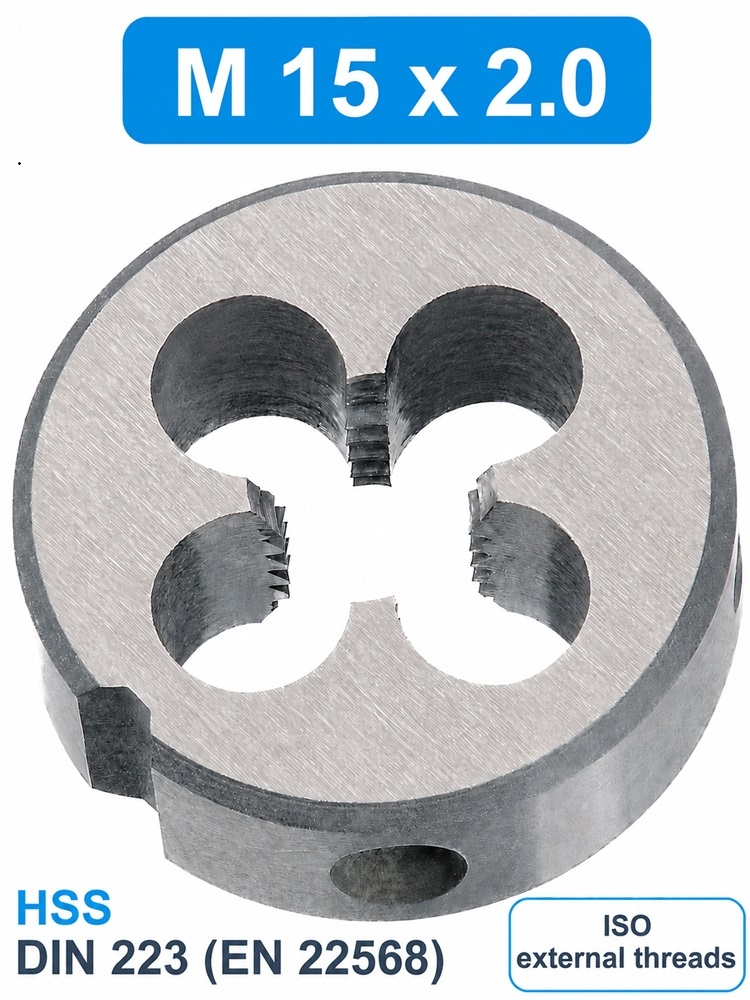

VÖLKEL 27456 Round Die DIN 223 (DIN EN 22568), HSS, M 15 x 2.0
€ 26.12 26.12 incl. VAT (21.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Völkel
Country of origin: DE/0004
Customs tariff number: 8207403000
Weight per piece: 72 g
No problem. Simply fill out the form and we will answer you as soon as possible.
VÖLKEL Round Die DIN 223 (DIN EN 22568) HSS is a round die for metric ISO external threads. It is suitable for cutting, recutting and cleaning external threads on rods, bolts and studs in workshop, repair, maintenance and small-batch production.
- Size: M 15 x 2.0 (available in other sizes here)
- Tool material: HSS
Features
- According to DIN 223 (DIN EN 22568)
- Metric ISO thread according to DIN 13
- Solid version (Form B)
- Tolerance class 6g
- Compact individual tool for external threading work
Technical Data
| Manufacturer | VÖLKEL |
| Item number | 27456 |
| Product type | Round die |
| Thread system | Metric ISO thread |
| Thread standard | DIN 13 |
| Standard | DIN 223 (DIN EN 22568) |
| Form | Solid version (Form B) |
| Size | M 15 x 2.0 |
| Material | HSS |
| Tolerance | 6g |
| Outside diameter | 38.0 mm |
| Recommended bolt diameter | 14.82 mm |
Applications
- For cutting external threads on rods, bolts and studs
- For recutting and cleaning existing external threads
- For repair, maintenance, prototyping and small-batch production
- For use with a suitable die stock
Application Notes
- Check whether the thread designation M 15 x 2.0 matches the workpiece and the required thread fit
- Prepare the workpiece with a clean lead-in chamfer before threading
- Use a suitable die stock to keep the die square to the workpiece axis
- Use a suitable cutting fluid matched to the workpiece material
- Maintain alignment during threading and break chips regularly by briefly reversing
- After machining, clean the die and check the finished thread with a matching part or a suitable gauge
Schmierstoff-Technik Völkel, Telgenkamp 36, 48249 Dülmen, +49 (0) 2594 91742-00, [email protected], www.schmierstoffe.de
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4022835274568 | VOE27456 |
