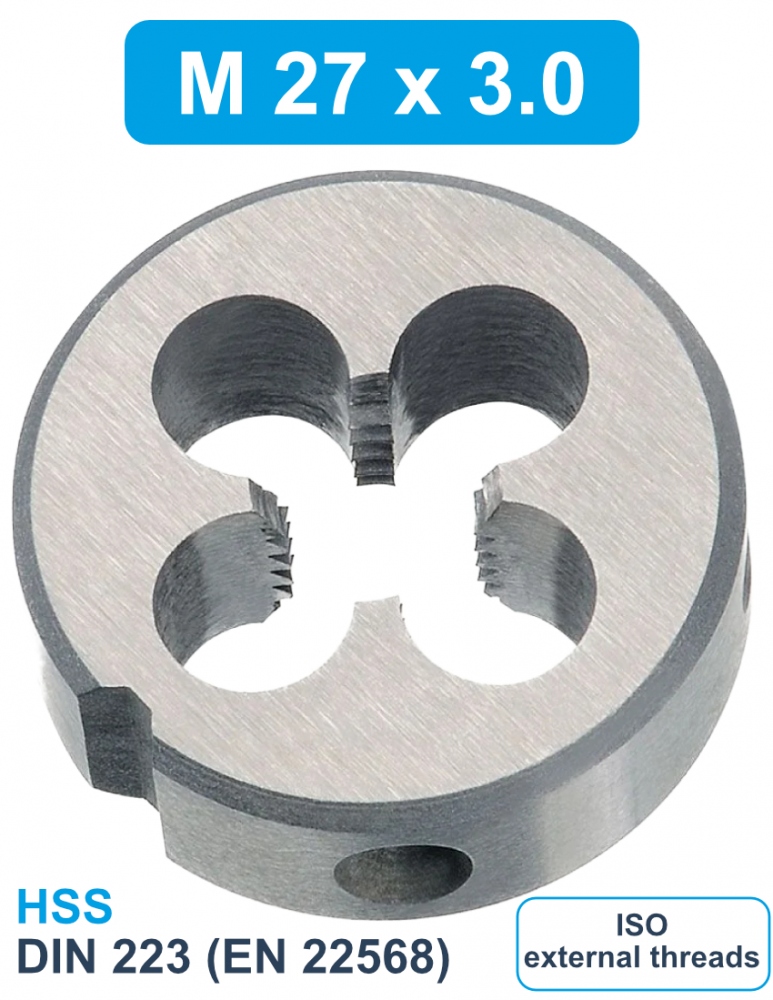

VÖLKEL 27476 Round Die DIN 223 (DIN EN 22568) HSS M27 x 3.0

VÖLKEL Round Die DIN 223 (DIN EN 22568) HSS - M27 x 3.0 is a solid round threading die for metric ISO external threads. It is designed for cutting, restoring and cleaning external threads on rods, bolts and studs in workshop, repair, maintenance and small batch applications.

• Product type: Round die, solid version (Form B)
• Tool material: HSS
• Size: M27 x 3.0
• Item no.: 27476
• Also available: M22 x 2.5 (27470), M24 x 3.0 (27474), M30 x 3.5 (27478)

Applications

• For cutting external threads on rods, bolts and studs
• For restoring and cleaning existing external threads
• For repair, maintenance, prototyping and small batch work
• For use with a suitable round die holder or die stock
• For manual or assisted external threading where correct alignment is required

Features

• According to DIN 223 (DIN EN 22568)
• Metric ISO thread according to DIN 13
• Solid version (Form B)
• HSS tool material
• Tolerance class 6g
• Compact individual tool for external thread work
• Suitable for creating, restoring and cleaning external threads

Technical Data

Application Notes

• Confirm that the thread designation M27 x 3.0 matches the workpiece and required thread fit.
• Prepare the workpiece with a clean lead-in chamfer before cutting.
• Use a suitable round die holder to keep the die square to the workpiece axis.
• Apply cutting fluid suitable for the workpiece material.
• Start with steady forward pressure and maintain alignment while cutting.
• Reverse briefly at intervals to break and clear chips from the cutting edges.
• After machining, clean the die and verify the finished thread fit with a matching part or suitable gauge.
