VÖLKELWHITE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M - online purchase

Manufacturer: EURAFCO

Country of origin: DE/0004

Customs tariff number:

Weight per piece: 500 g

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

seven + seven = ?

( Examples: two + three = 5, three - five = -2 )

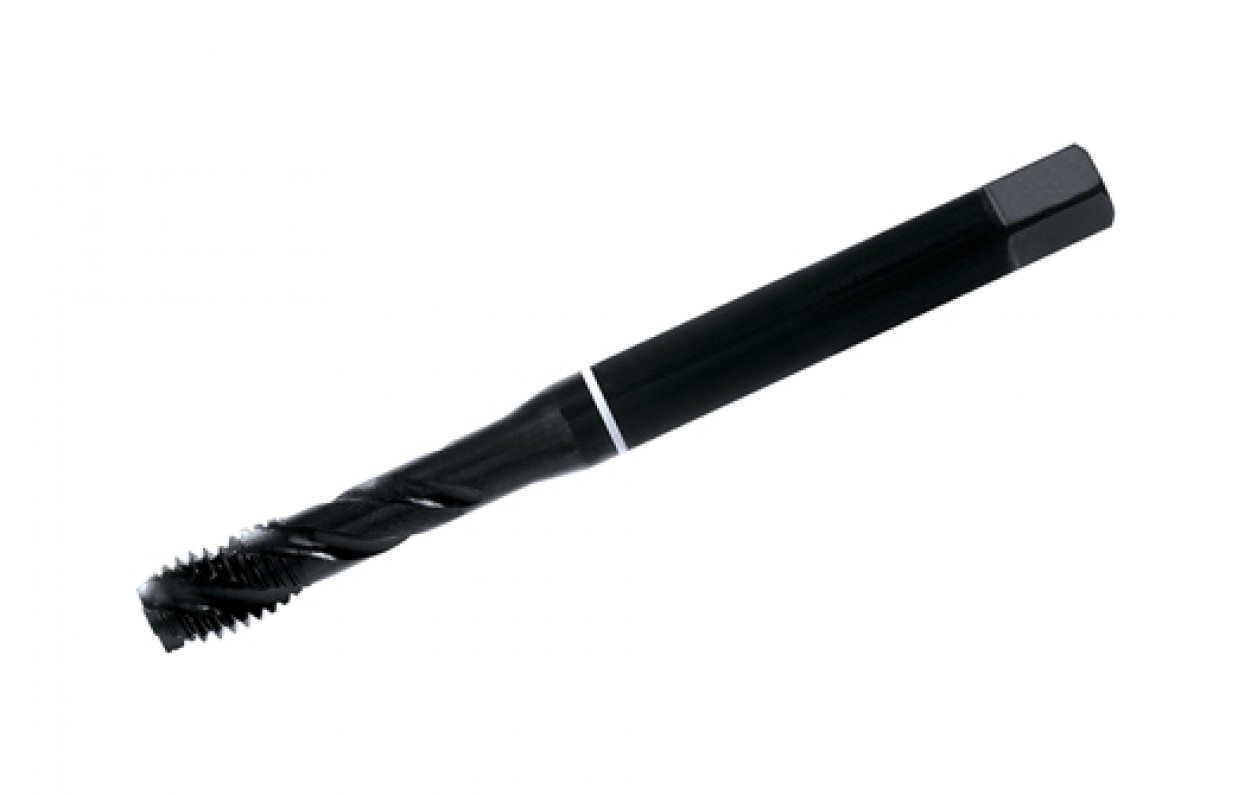

The VOELKEL HSS-E machine taps with white ring are especially suitable for stainless steel (INOX), long-chipping up to 1000 N/mm² and for chrome-nickel alloys.

Technical Data

Type of thread: Metric ISO-thread DIN 13
Standard: DIN 371 / DIN 376
Material: HSS-E
Tolerance: ISO 2 /6H
Size: Nominal diameter D M 3 x 0.5 - M 20 x 2.5
Overall length (L1): 56 mm - 140 mm
Thread length (L2): 6 mm - 25 mm
Shank diameter (D2): 3.5 mm - 16mm
Drive connector: Square 2.7 mm - 12 mm

Recommended application

Stainless steel, long chipping up to 1000 N/mm²
Abrasive material
Chrome-nickel alloys
For blind holes

VAP-coating

Improved adhesion of the coolant and Lubricant
Reduces tearing of the lubricating filand the formation of cold welding

Contents

1x WHITE RING machine tap, DIN 371, HSS-E, M

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
M 3 x 0,5	4022835362265	36226
M 4 x 0.7	4022835362302	36230
M 6 x 1.0	4022835362388	36238
M 8 x 1.25	4022835362425	36242
M 10 x 1.5	4022835362463	36246
M 12 x 1.75	4022835362500	36250
M 14 x 2.0	4022835362548	36254
M 16 x 2.0	4022835362586	36258
M 18 x 2.5	4022835362623	36262
M 20 x 2.5	4022835362623	36262
M 5 x 0.8	4022835362340	36234

Last viewed

VÖLKELWHITE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M

€ 13.57 13.57 incl. VAT (11.40 excl. VAT), per piece *
