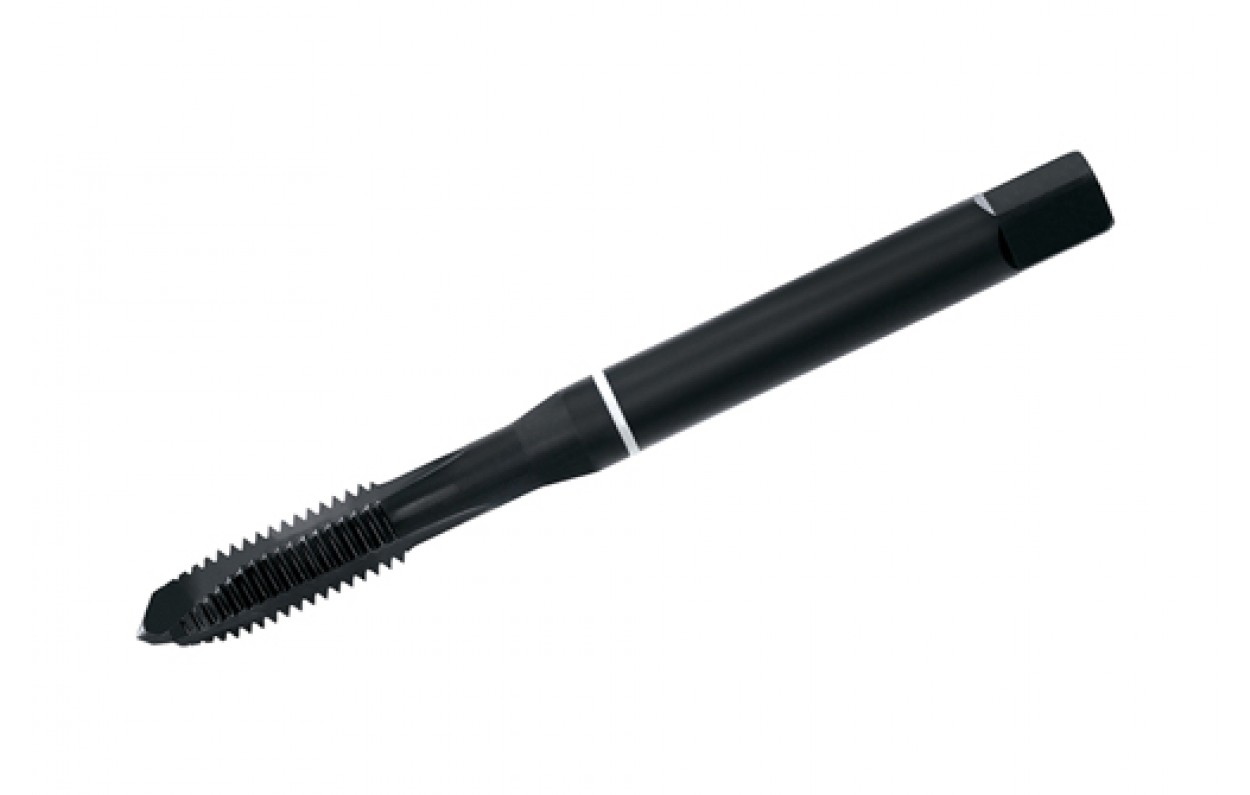

VÖLKEL WHITE RING Machine taps DIN 5156 Form B HSS-E – G (BSP)

VÖLKEL WHITE RING Machine taps DIN 5156 Form B HSS-E – G (BSP)

VÖLKEL WHITE RING Machine taps DIN 5156 Form B HSS-E – G (BSP)

•
•
•
•

€ 23.56 23.56 incl. VAT (19.80 excl. VAT), per piece *

Availability: shipping in 1-2 working days

Packaging unit: 1 piece

Size

• G 1/8 x 28
• G 1/4 x 19 (+ 5.24 (4.40)* €)
• G 3/8 x 19 (+ 10.47 (8.80)* €)
• G 1/2 x 14 (+ 26.18 (22.00)* €)

Quantity   Add to Cart

•  Description
•  Download (0)
•  GTIN/EAN, MPN

More…

Manufacturer: EURAFCO

Country of origin: DE/0004

Customs tariff number:

Weight per piece: 500 g

Recommend this product

Please give the recipient email address, as well as your name and email address.

Recipient

e-mail ×

Sender

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

nine - two = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

nine - nine = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

VOELKEL HSS-E PM WHITE RING Machine taps. The VOELKEL HSS-E machine taps with white ring are especially suitable for stainless steel (INOX), long-chipping up to 1000 N/mm² and for chrome-nickel alloys.

Technical Data

• Type of thread: Pipe-thread DIN ISO 228
• Standard: DIN 5156
• Material: HSS-E
• Tolerance: ISO 2 /6H
• Size: Nominal diameter D G 1/2 x 14 - G 1/8 x 28
• Overall length (L1): 90 mm - 125 mm
• Thread length (L2): 20 mm - 25 mm
• Shank diameter (D2): 7 mm - 16 mm
• Drive connector: Square 5.5 mm - 12 mm

Recommended application

• Stainless steel, long chipping up to 1000 N/mm²
• Abrasive material
• Chrome-nickel alloys
• For through holes

VAP-coating

• Improved adhesion of the coolant and Lubricant
• Reduces tearing of the lubricating filand the formation of cold welding

Contents

• 1x WHITE RING machine tap, DIN 5156 , HSS-E, G

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
G 1/8 x 28	4022835359920	35992
G 1/4 x 19	4022835359937	35993
G 3/8 x 19	4022835359944	35994
G 1/2 x 14	4022835359951	35995
