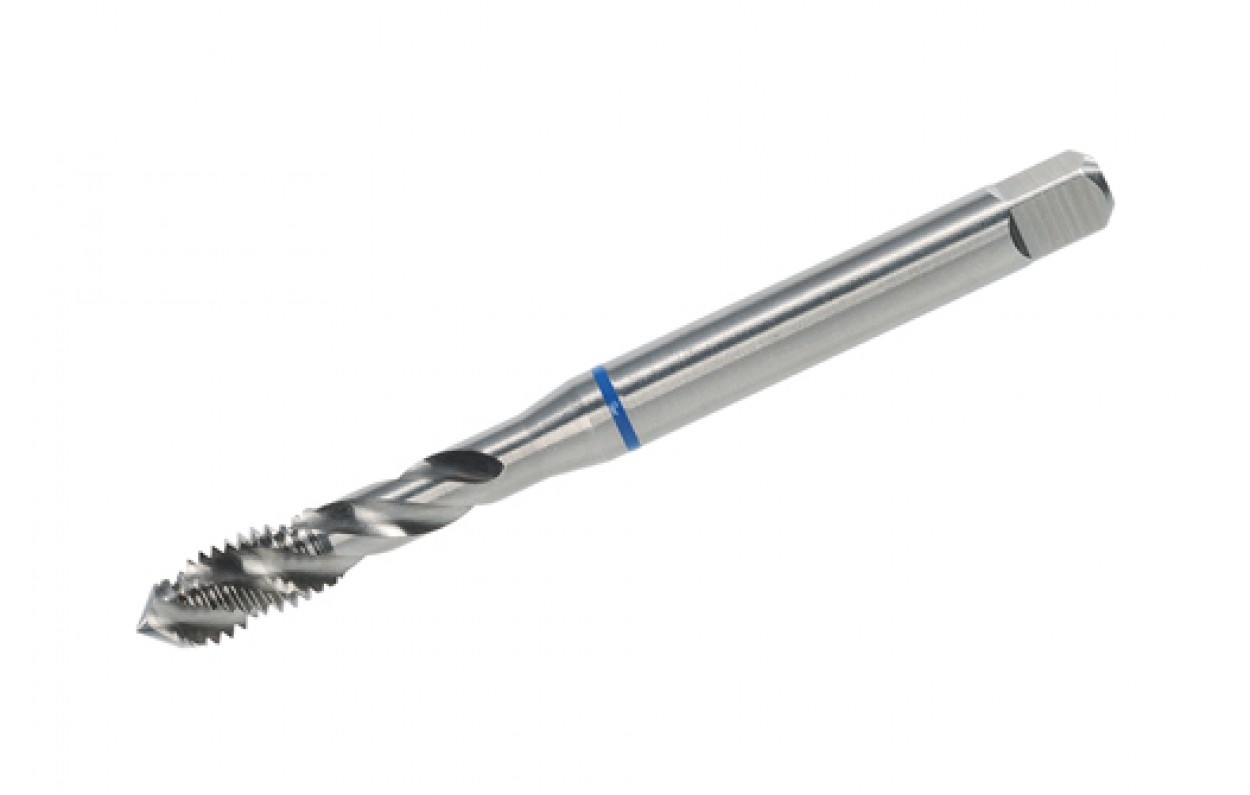

VÖLKEL BLUE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M
VÖLKEL BLUE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M
€ 12.38 12.38 incl. VAT (10.40 excl. VAT), per piece *
Availability: shipping in 1-2 working days
Packaging unit: 1 piece
Manufacturer: EURAFCO
Country of origin: DE/0004
Customs tariff number:
Weight per piece: 500 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
The VOELKEL HSS-E PM machine taps with blue ring are suitable for non abrasive material up to 1200 N/mm².
HSS-E Machine taps with TiCN coating.
Machine taps with outstanding wear-resistance due to improved hardness and toughness. Intensive and optimum cooling essential as reduced heat resistance.
Technical Data
Recommended application
Contents
HSS-E Machine taps with TiCN coating.
Machine taps with outstanding wear-resistance due to improved hardness and toughness. Intensive and optimum cooling essential as reduced heat resistance.
Technical Data
- Type of thread: Metric ISO-thread DIN 13
- Standard: DIN 371
- Material: HSS-E
- Tolerance: ISO 2 /6H
- Size: Nominal diameter D M 3 x 0.5 - D M 20 x 2.5
- Overall length (L1): 56 mm - 140 mm
- Thread length (L2): 6 mm - 25 mm
- Shank diameter (D2): 3.5 mm - 16 mm
- Drive connector: Square 2.7 mm - 12 mm
Recommended application
- Wear resistant steel up to 1200 N/mm²
- High alloy steel
- Short-chipping material
- Short-chipping stainless steel
- Alloy tool steel
- For blind holes
Contents
- 1x BLUE RING Machine taps DIN 371/376 Form C 39°RSP HSS-E - M
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| M 3 x 0,5 | 4022835364269 | 36426 |
| M 4 x 0.7 | 4022835364306 | 36430 |
| M 5 x 0.8 | 4022835364344 | 36434 |
| M 6 x 1.0 | 4022835364382 | 36438 |
| M 8 x 1.25 | 4022835364429 | 36442 |
| M 10 x 1.25 | 4022835364467 | 36446 |
| M 12 x 1.75 | 4022835364504 | 36450 |
| M 14 x 2.0 | 4022835364542 | 36454 |
| M 16 x 2.0 | 4022835364580 | 36458 |
| M 18 x 2.5 | 4022835364627 | 36462 |
| M 20 x 2.5 | 4022835364665 | 36466 |
