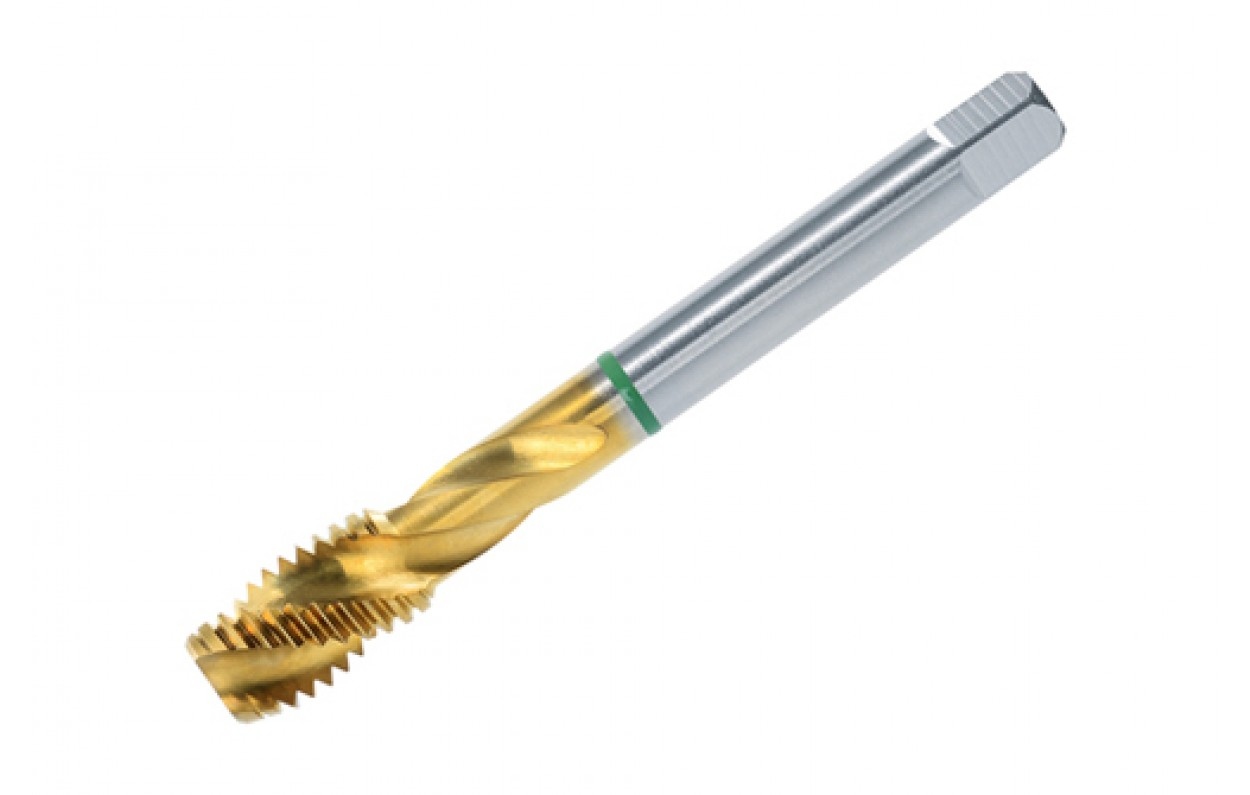

VÖLKEL GREEN RING Machine taps JIS B-4430 39°RSP HSS-E PM TiN – M

VÖLKEL GREEN RING Machine taps JIS B-4430 39°RSP HSS-E PM TiN – M

VÖLKEL GREEN RING Machine taps JIS B-4430 39°RSP HSS-E PM TiN – M

•
•
•
•

€ 23.21 23.21 incl. VAT (19.50 excl. VAT), per piece *

Availability: shipping in 1-2 working days

Packaging unit: 1 piece

Size

• M 3 x 0,5
• M 4 x 0.7
• M 5 x 0.8 (+ 1.79 (1.50)* €)
• M 6 x 1.0 (+ 4.76 (4.00)* €)
• M 8 x 1.25 (+ 11.31 (9.50)* €)
• M 10 x 1.5 (+ 20.23 (17.00)* €)
• M 12 x 1.75 (+ 38.08 (32.00)* €)
• M 14 x 2.0 (+ 72.00 (60.50)* €)
• M 16 x 2.0 (+ 85.68 (72.00)* €)

Quantity   Add to Cart

•  Description
•  Download (0)
•  GTIN/EAN, MPN

More…

Manufacturer: EURAFCO

Country of origin: DE/0004

Customs tariff number:

Weight per piece: 500 g

Recommend this product

Please give the recipient email address, as well as your name and email address.

Recipient

e-mail ×

Sender

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - four = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

six - five = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

The VOELKEL HSS-E-PM-TiN machine taps have an increased wear resistance and toughness. Furthermore the TiN-coating improves anti-friction properties, thereby improved wear-resistance and reduced tendency of build-up edge.

Technical Data

• Type of thread: Metric ISO-thread DIN 13
• Standard: JIS B-4430
• Material: HSS-E PM
• Tolerance: OH1
• Size: Nominal diameter D M 3 x 0.5 - D M 16 x 2.0
• Overall length (L1): 46 mm - 95 mm
• Thread length (L2): 6 mm - 22 mm
• Shank diameter (D2): 4 mm - 12,5 mm
• Drive connector: Square 3,2 mm - 10 mm

Recommended application

• Non abrasive material up to 1000 N/mm²
• Stainless and alloyed steel sorts
• Unalloyed and low alloyed steel
• Copper- and Aluminium alloys
• Form C for blind holes

Contents

• 1x  GREEN RING Machine taps JIS B-4430 39°RSP HSS-E PM TiN - M

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
M 3 x 0,5	4022835911555	91155
M 4 x 0.7	4022835911579	91157
M 5 x 0.8	4022835911586	91158
M 6 x 1.0	4022835911593	91159
M 8 x 1.25	4022835911616	91161
M 10 x 1.5	4022835911630	91163
M 12 x 1.75	4022835911654	91165
M 14 x 2.0	4022835911661	91166
M 16 x 2.0	4022835911678	91167
