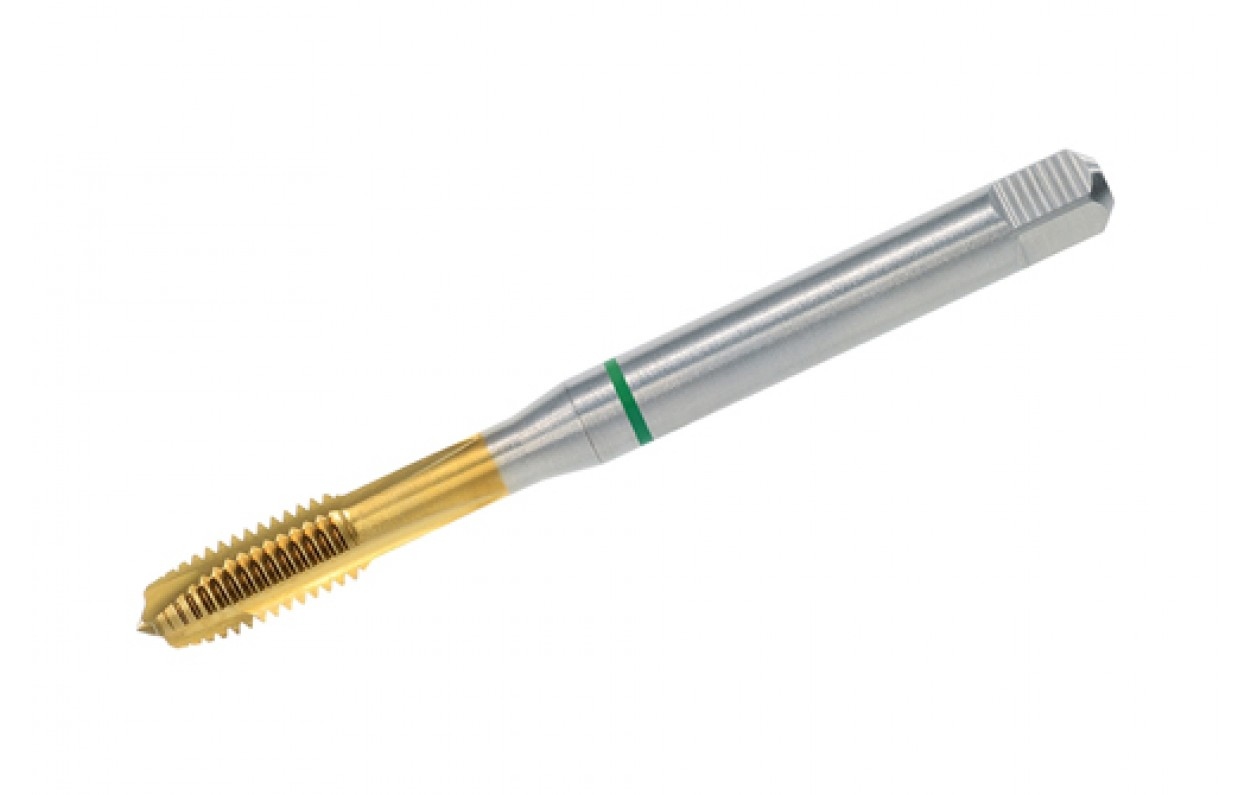

VÖLKEL GREEN RING Machine taps DIN 371/376 Form B HSS-E PM TiN – M

VÖLKEL GREEN RING Machine taps DIN 371/376 Form B HSS-E PM TiN – M

VÖLKEL GREEN RING Machine taps DIN 371/376 Form B HSS-E PM TiN – M

•
•
•
•

€ 21.42 21.42 incl. VAT (18.00 excl. VAT), per piece *

Availability: shipping in 1-2 working days

Packaging unit: 1 piece

Size

• M 3 x 0,5
• M 4 x 0.7
• M 5 x 0,8 (+ 1.19 (1.00)* €)
• M 6 x 1.0 (+ 3.57 (3.00)* €)
• M 8 x 1.25 (+ 8.33 (7.00)* €)
• M 10 x 1.5 (+ 20.23 (17.00)* €)
• M 12 x 1.75 (+ 40.46 (34.00)* €)
• M 14 x 2.0 (+ 70.21 (59.00)* €)
• M 16 x 2.0 (+ 85.68 (72.00)* €)

Quantity   Add to Cart

•  Description
•  Download (0)
•  GTIN/EAN, MPN

More…

Manufacturer: EURAFCO

Country of origin: DE/0004

Customs tariff number:

Weight per piece: 500 g

Recommend this product

Please give the recipient email address, as well as your name and email address.

Recipient

e-mail ×

Sender

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

seven - five = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three + five = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

The VOELKEL HSS-E-PM-TiN machine taps have an increased wear resistance and toughness. Furthermore the TiN-coating improves anti-friction properties, thereby improved wear-resistance and reduced tendency of build-up edge.

Technical Data

• Type of thread: Metric ISO-thread DIN 13
• Standard: DIN 371
• Material: HSS-E PM
• Tolerance: ISO 2 /6H
• Size: Nominal diameter D M 3 x 0.5 - D M 16 x 2.0
• Overall length (L1): 56 mm - 110 mm
• Thread length (L2): 6 mm - 22 mm
• Shank diameter (D2): 3.5 mm - 12 mm
• Drive connector: Square 2.7 mm - 9 mm

Recommended application

• Non abrasive material up to 1000 N/mm²
• Stainless and alloyed steel sorts
• Unalloyed and low alloyed steel
• Copper- and Aluminium alloys
• Form B for through holes

Contents

• 1x GREEN RING Machine taps DIN 371/376 Form B HSS-E PM TiN - M

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
M 3 x 0,5	4022835300311	30031
M 4 x 0.7	4022835300328	30032
M 5 x 0,8	4022835300335	30033
M 6 x 1.0	4022835300342	30034
M 8 x 1.25	4022835300359	30035
M 10 x 1.5	4022835300366	30036
M 12 x 1.75	4022835300373	30037
M 14 x 2.0	4022835300380	30038
M 16 x 2.0	4022835300397	30039
