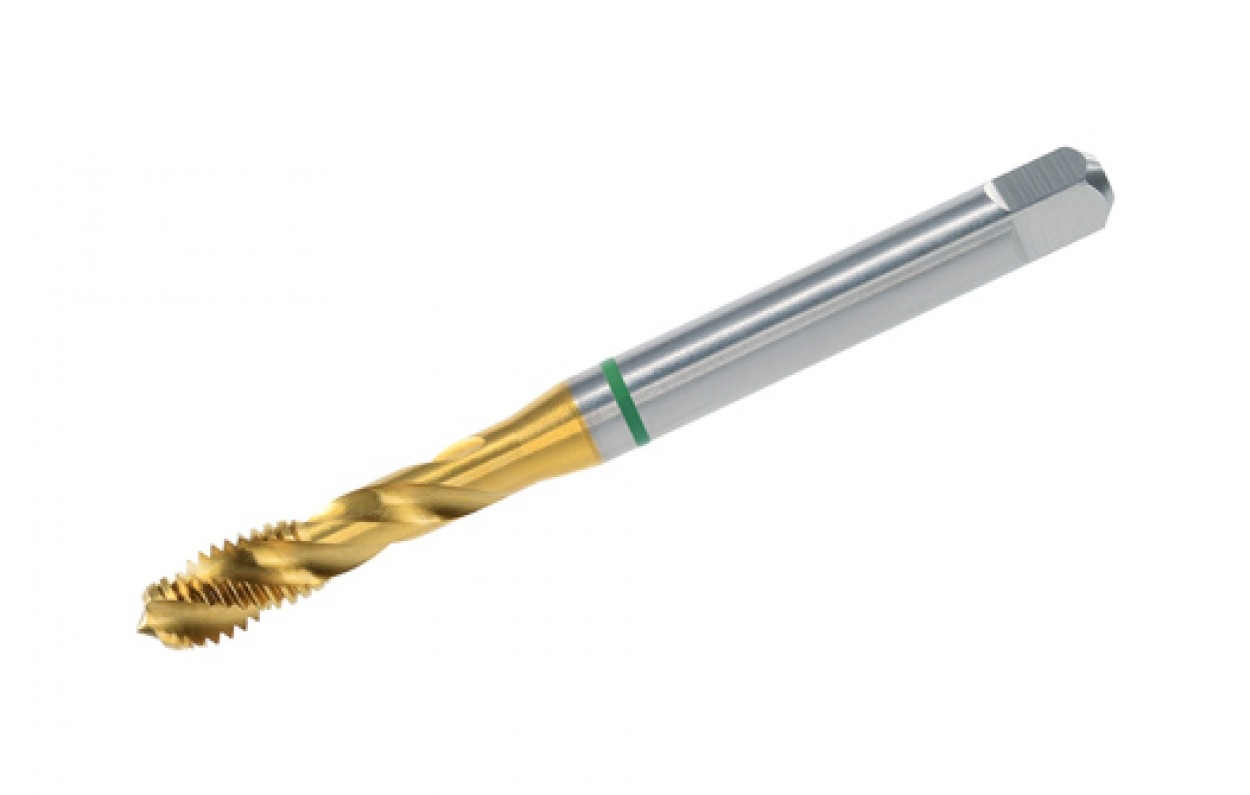

VÖLKEL GREEN RING Machine Tap, DIN 371/376 C 39°RSP HSS-E PM TiN – M

VÖLKEL GREEN RING Machine Tap, DIN 371/376 C 39°RSP HSS-E PM TiN – M

VÖLKEL GREEN RING Machine Tap, DIN 371/376 C 39°RSP HSS-E PM TiN – M

•
•
•
•

€ 24.4 24.40 incl. VAT (20.50 excl. VAT), per piece *

Availability: shipping in 1-2 working days

Packaging unit: 1 piece

Size

• M 3 x 0,5
• M 4 x 0.7
• M 5 x 0.8 (+ 1.79 (1.50)* €)
• M 6 x 1.0 (+ 4.76 (4.00)* €)
• M 8 x 1.25 (+ 11.31 (9.50)* €)
• M 10 x 1.5 (+ 21.42 (18.00)* €)
• M 12 x 1.75 (+ 38.68 (32.50)* €)
• M 14 x 2.0 (+ 73.19 (61.50)* €)
• M 16 x 2.0 (+ 85.68 (72.00)* €)

Quantity   Add to Cart

•  Description
•  Download (0)
•  GTIN/EAN, MPN

More…

Manufacturer: EURAFCO

Country of origin: DE/0004

Customs tariff number:

Weight per piece: 500 g

Recommend this product

Please give the recipient email address, as well as your name and email address.

Recipient

e-mail ×

Sender

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

six - eight = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight - eight = ?

( Examples: two + three = 5, three - five = -2 )

 Submit

The VOELKEL HSS-E-PM-TiN machine taps have an increased wear resistance and toughness. Furthermore the TiN-coating improves anti-friction properties, thereby improved wear-resistance and reduced tendency of build-up edge.

Technical Data

• Type of thread: Metric ISO-thread DIN 13
• Standard: DIN 371
• Material: HSS-E PM
• Tolerance: ISO 2 /6H
• Size: Nominal diameter D M 3 x 0.5 - D M 16 x 2.0
• Overall length (L1): 56 mm - 110 mm
• Thread length (L2): 6 mm - 22 mm
• Shank diameter (D2): 3.5 mm - 12 mm
• Drive connector: Square 2.7 mm - 9 mm

Recommended application

• Non abrasive material up to 1000 N/mm²
• Stainless and alloyed steel sorts
• Unalloyed and low alloyed steel
• Copper- and Aluminium alloys
• Form C for blind holes

Contents

• 1x GREEN RING Machine tap DIN 371/376 Form C 39°RSP HSS-E PM TiN - M

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
M 3 x 0,5	4022835301318	30131
M 4 x 0.7	4022835301325	30132
M 5 x 0.8	4022835301332	30133
M 6 x 1.0	4022835301349	30134
M 8 x 1.25	4022835301356	30135
M 10 x 1.5	4022835301363	30136
M 12 x 1.75	4022835301370	30137
M 14 x 2.0	4022835301387	30138
M 16 x 2.0	4022835301394	30139

* Price in Euro including VAT, plus forwarding charges.
In parentheses: price in Euro excluding VAT, plus forwarding charges.
Clients outside the EU as well as companies outside of Germany don't pay any VAT (excepting for shipping in Germany)!
