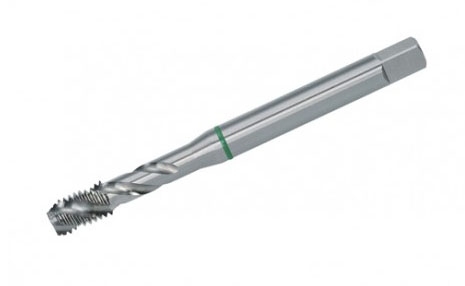

VÖLKEL GREEN RING Machine taps DIN 371/376, Form C 39°RSP HSS-E - M
VÖLKEL GREEN RING Machine taps DIN 371/376, Form C 39°RSP HSS-E - M
€ 12.38 12.38 incl. VAT (10.40 excl. VAT), per piece *
Availability: shipping in 1-2 working days
Packaging unit: 1 piece
Manufacturer: EURAFCO
Country of origin: DE/0004
Customs tariff number:
Weight per piece: 500 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
VÖLKEL GREEN RING Machine taps DIN 371/376 Form C 39°RSP HSS-E – M
Technical Data
Technical Data
- Type of thread: Metric ISO-thread DIN 13
- Standard: DIN 371 / DIN 376
- Material: HSS-E
- Tolerance: ISO 2 /6H
- Size: Nominal diameter D M 3 x 0.5 - D M 20 x 2.5
- Overall length (L1): 56 mm - 140 mm
- Thread length (L2): 11 mm - 34 mm
- Shank diameter (D2): 3.5 mm - 16 mm
- Drive connector: Square 2.7 mm - 12 mm
- Non abrasive material up to 1000 N/mm²
- Unalloyed and low alloyed steel
- Long chipping material
- For blind holes
- 1x GREEN RING Machine Tap, DIN 371/376 Form C 39°RSP HSS-E – M
M 3 x 0,5
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| M 3 x 0,5 | 4022835363262 | 36326 |
| M 4 x 0.7 | 4022835363309 | 36330 |
| M 5 x 0.8 | 4022835363347 | 36334 |
| M 6 x 1.0 | 4022835363385 | 36338 |
| M 8 x 1.25 | 4022835363422 | 36342 |
| M 10 x 1.5 | 4022835363460 | 36346 |
| M 12 x 1.75 | 4022835363507 | 36350 |
| M 14 x 2.0 | 4022835363545 | 36354 |
| M 16 x 2.0 | 4022835363583 | 36358 |
| M 18 x 2.5 | 4022835363620 | 36362 |
| M 20 x 2.5 | 4022835363668 | 36366 |
