VÖLKEL GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M
VÖLKEL GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M
from € 10.35 10.35 incl. VAT (8.70 excl. VAT), per piece *
Availability: shipping in 1-2 working days
Packaging unit: 1 piece
Manufacturer: EURAFCO
Country of origin: DE/0004
Customs tariff number:
Weight per piece: 500 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
The VOELKEL HSS-E machine taps with green ring are suitable
for non abrasive material up to 1000 N/mm².
Technical Data
for non abrasive material up to 1000 N/mm².
Technical Data
- Type of thread: Metric ISO-thread DIN 13
- Standard: DIN 371 / DIN 376
- Material: HSS-E
- Tolerance: ISO 2 /6H

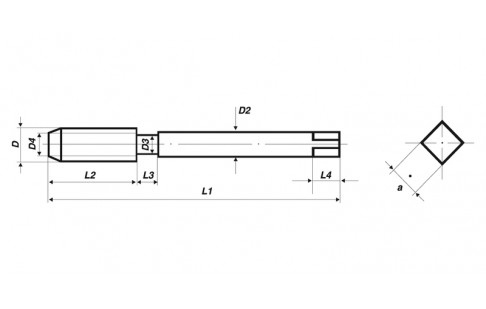

- Size: Nominal diameter D M 3 x 0.5 - D M 20 x 2.5
- Overall length (L1): 56 mm - 140 mm
- Thread length (L2): 11 mm - 34 mm
- Shank diameter (D2): 3.5 mm - 16 mm
- Drive connector: Square 2.7 mm - 12 mm
- Non abrasive material up to 1000 N/mm²
- Unalloyed and low alloyed steel
- Long chipping material

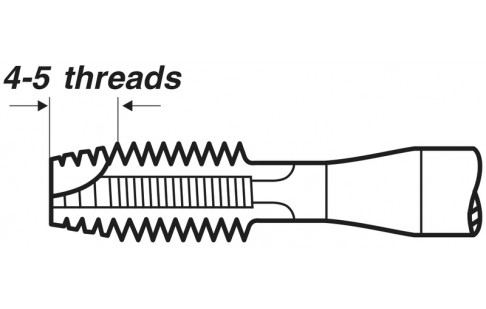

- For through holes
- 1x GREEN RING Machine Tap, DIN 371/376 Form B HSS-E – M
M 3 x 0,5 DIN 371, M 4 x 0,7 DIN 371, M 5 x 0,8 DIN 371, M 6 x 1,0 DIN 371, M 8 x 1,25 DIN 371, M 10 x 1,5 DIN 371, M 12 x 1,75 DIN 376, M 14 x 2,0 DIN 376, M 16 x 2,0 DIN 376, M 18 x 2,5 DIN 376, M 20 x 2,5 DIN 376
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| M 3 x 0,5 DIN 371 | 4022835353263 | 35326 |
| M 4 x 0,7 DIN 371 | 4022835353300 | 35330 |
| M 5 x 0,8 DIN 371 | 4022835353348 | 35334 |
| M 6 x 1,0 DIN 371 | 4022835353386 | 35338 |
| M 8 x 1,25 DIN 371 | 4022835353423 | 35342 |
| M 10 x 1,5 DIN 371 | 4022835353461 | 35346 |
| M 12 x 1,75 DIN 376 | 4022835353508 | 35350 |
| M 14 x 2,0 DIN 376 | 4022835353546 | 35354 |
| M 16 x 2,0 DIN 376 | 4022835353584 | 35358 |
| M 18 x 2,5 DIN 376 | 4022835353621 | 35362 |
| M 20 x 2,5 DIN 376 | 4022835353669 | 35366 |
* Price in Euro including VAT, plus forwarding charges.
In parentheses: price in Euro excluding VAT, plus forwarding charges.
Clients outside the EU as well as companies outside of Germany don't pay any VAT (excepting for shipping in Germany)!
