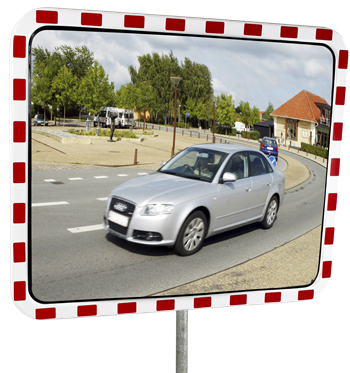

Dancop TM AC Traffic mirror acrylic white/red reflectors
from € 297.44 297.44 incl. VAT (249.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Dancop
Country of origin: DK/0008
Customs tariff number: 39269097
Weight per piece: 10.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Traffic mirror, acrylic, white frame with red reflectors, for outdoor and indoor use, incl. 4-point ball joint fixing unit.
TÜV-certified and wind load tested.
- Material: acrylic
- Functional guarantee: 5 Years
| Article No. | Size | Material | Weight | Viewing distance |
|---|
| TM AC 60 | ø 60 cm | Acrylic | 5,2 kg | 9-15 m |
| TM AC 80 | ø 80 cm | Acrylic | 7,6 kg | 15-22 m |
| TM AC 40 x 60 | 40 x 60 cm | Acrylic | 5 kg | 9-15 m |
| TM AC 60 x 80 | 60 x 80 cm | Acrylic | 8,8 kg | 15-22 m |
| TM AC 80 x 100 | 80 x 100 cm | Acrylic | 12,0 kg | 22-27 m |
| TM AC 100 x 120 | 100 x 120 cm | Acrylic | 15 kg | 27-32 m |
Description
The TM traffic mirror is recommended for increased traffic safety in streets, minor roads and smaller lanes with
sharp bends where blind spots are a common hazard. It can be used as well at industrial areas where road users
and pedestrians are in risk of accidents. Due to the applied reflective film on the front side of the frame the risk of
accidents can be minimized especially in bad weather conditions and at night.
The mirror is produced into three different impact resistant materials: acrylic (70 % more impact resistant than glass),
almost indestructible polycarbonate or inox. All versions are equipped with reflective foil type RA2 of 3M and all are
Tüv certified. The version made of almost indestructible polycarbonate is particularly suitable for vandalism-endangered
areas. Due to its weather-resistant materials the mirror is especially suitable for a long-term outdoor use. The mirror is
fixed with silicone in a solid UV-resistant frame with extra strengthening on the back side. The silicone avoids the
penetration of water and thus protects the mirror for a long time.
Fixing
- A 4-point ball joint mounting bracket is included in the scope of delivery.
- This special bracket makes an optimal fixation of the mirror possible.
- The mirror can be positioned at different angles for every application.
- The solid bracket resists strong winds (it is wind load-tested up to force 12 wind – hurricane > 117 km/h)
- Can either be installed directly on a wall or a post mounting (Ø 50-85 mm).
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 40 x 60 cm | 4250912306271 | TM AC 40 X 60 |
| ø 60 cm | 4250912306288 | TM AC 60 |
| 60 x 80 cm | 4250912306295 | TM AC 60 X 80 |
| ø 80 cm | 4250912306301 | TM AC 80 |
| 80 x 100 cm | 4250912306318 | TM AC 80 X 100 |
| 100 x 120 cm | 4250912306264 | TM AC 100 X 120 |
