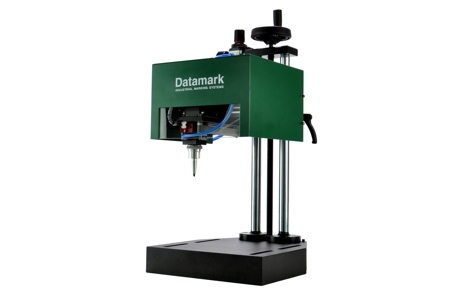

Datamark ADVANCED MP-120 Pneumatic dot peen marking machine

Datamark ADVANCED MP-120 Pneumatic dot peen marking machine

pics/Datamark/mp-120/datamark-pin-marking-machine-mp-120-advanced-electric.jpg

€ 7370.8 7,370.80 incl. VAT (6,193.95 excl. VAT), per piece *

Availability: shipping in 3-5 working days

Packaging unit: 1 piece

More…

Manufacturer: Datamark

Country of origin: ES/0011

Customs tariff number: 84671900

Weight per piece: 24.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

six - zero = ?

( Examples: two + three = 5, three - five = -2 )

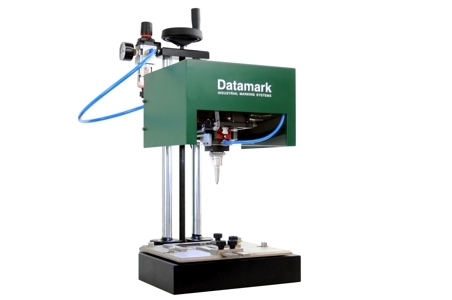

The MP-120 Advanced is a highly featured desktop marking machine, fast, powerful and reliable, suitable for a wide range of industrial parts marking applications; components marking, metal nameplates marking, serial marking, etc. Marking control and programming is easily done using Datasoft PC software connected to the machine via LAN/Ethernet interface.

Qualities:

Powerful high speed pneumatic marking head.
Robust full metal construction.
Interchangeable marking mechanism & stylus depending on the applications needs.
Integrated LED lighting system for a better view of the working space.
Transparent front window for easier view and adjustment of the marking parts.
Wide robust working base ready to install any custom fixture.
Datamatrix and QR-Codes marking capability.
Low investment cost, free of maintenance.

Technical specifications:

Powerful pneumatic marking head.
120 x 100 mm marking window (4.7″x 4″).
Precisse marking head movement via independent stepping motors.
Programmable marking speed up to 12 characteres per second.
Interchangeable marking stylus for standard, fast and deep marking.
Column with manual height adjustment.
Maximum workpiece height 240 mm (94.5″)
Robust cast-iron workbase

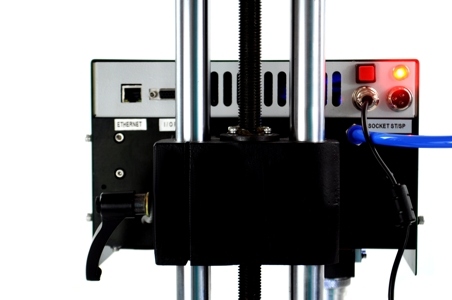

LAN/Ethernet interface for PC and network connection.
110-220V 50-60 Hz. external power supply.
Air pressure required 6 bar.
Weight 20 Kg.

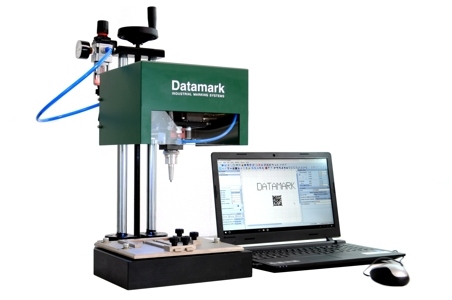

PC-Software:

Easy and intuitive WYSIWYG visual graphic interface.
Selectable languages; spanish, french, english, german, italian, russian.
PC Windows operating systems (Windows, 7, 8 ,10).
LAN/Ethernet static connection required.
Marking texts, serial numbers, symbols and imported logos.
Datamatrix y and QR-Codes marking.
Dot matrix formed marking characteres; 5×7, 7×9, 11×17 & continuos line.
Special high speed marking vector types.
All decorative-artistic Windows True-Types available.
Vector logos marking (HPGL, PLT).
Marking data imported from CSV structured files.
Automatic barcode label printing features included.
Marking automatic data entered via barcoder scanners.
Unlimited marking edited files and logos storage capacity.
Automatic marking data programming; serial numbers, time, date, shift codes.
Adjustable character height, width, angle position, circunferential position and mirrowed.
Adjustable marking speed up to 12 characteres per second.
Adjustable marking force-deph and dots density.
On-screen mark preview and trial-run features.
