Datamark Portable dot peen marking machine MP-80

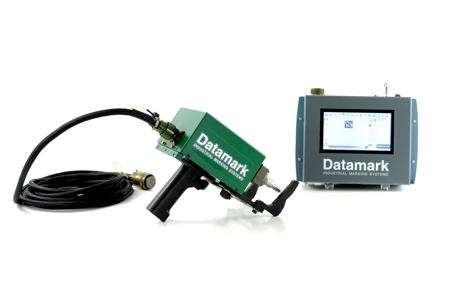

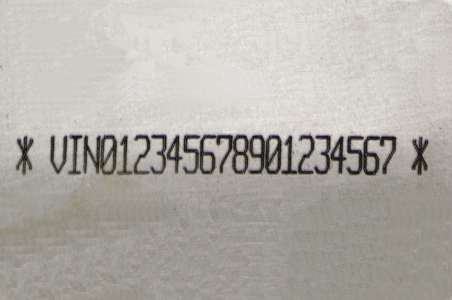

High performance handheld portable dot peen marking machine with a generous 80 x 30 mm marking area, specially suitable for marking large format texts and numbers on big parts; marking tubes, pipes, chassis, marking profiles, etc. Its powerful pneumatic actuated marking head allows creating deep marks, perfectly readable after painting, galvanizing or blasting the parts. Controlling and programming the marking machine is really easy thanks to the fully featured touch screen controller connected to the pistol through a plug & play robotic cable.

Qualities:


• Fast, powerful and reliable dot peen marking machine.
• Advanced ergonomic compact design, light, robust and easy to use.
• All metallic constructed body, with no plastic components.
• Easy operation through advanced touch screen controller.
• Plug&play connector for instant replacement of the robotic cable.
• Datamatrix and QR-Codes marking for automatic parts identification.
• Desktop bench column available for smaller parts and plates marking.
• Cost-effective, free of maintenance.

Technical specifications:

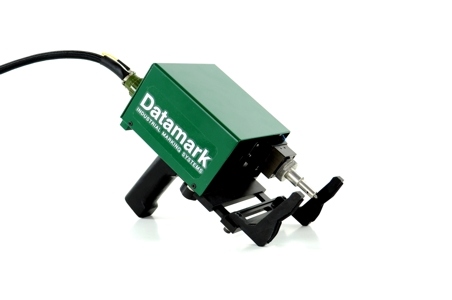

• Compact, robust and lightweight design.

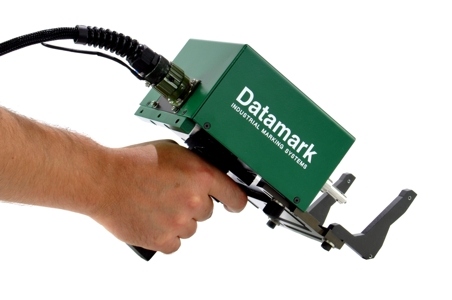

• Easy-grip handle with a push button to trigger the marking cycle.
• Adjustable positioning front feet to reach the most difficult areas.
• 80 x 30 mm marking window (3.1″ x 1.2″).
• Flat X-Y axis movement of the marking head (no pivoting).
• Programmable marking speed up to 12 characteres per second.
• Programmable marking depth.
• 6 meters plug&play umbilical cable as standard length.
• Interchangeable marking stylus for standard, fast and deep marking.
• Weight: 2,3 Kg.

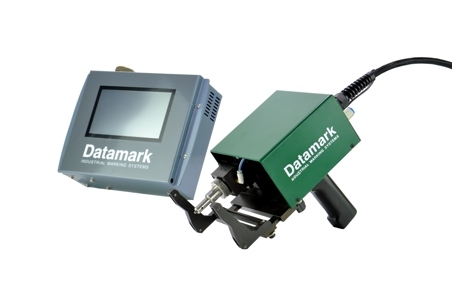

Controller:


• Full 7″ touch screen color display.
• Text, serial numbers, symbols and imported logos marking.
• Datamatrix and QR-Code marking.
• 32 different selectable marking fonts; dot-matrix, vector and artistic types.
• Vector logos marking (HPGL, PLT) imported via USB memory stick.
• Unlimited marking edited files and logos storage capacity.
• Automatic marking data programming; serial numbers, time, date, shift codes.
• Adjustable character height, width, angle position, circunferential position and mirrowed.
• Marking data entry via barcode readers and barcode label printing features included.
• Marking data preview and trial run features included.
• Interface IN/OUT, 4 inputs and 3 output digital signals.
• RS-232, RS-485 and USB interfaces.
• 110-220V 50-60 Hz. external power supply.
• Weight: 2,7 kg

All product features as well as standard equipment and options can be downloaded in the download area as a pdf.
