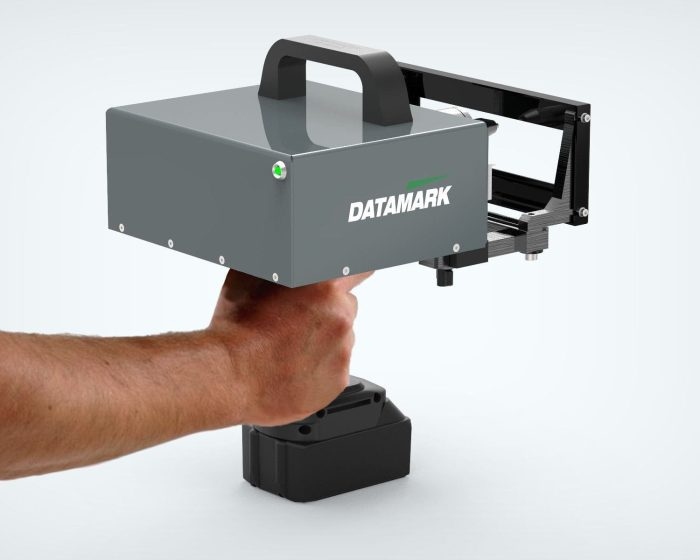

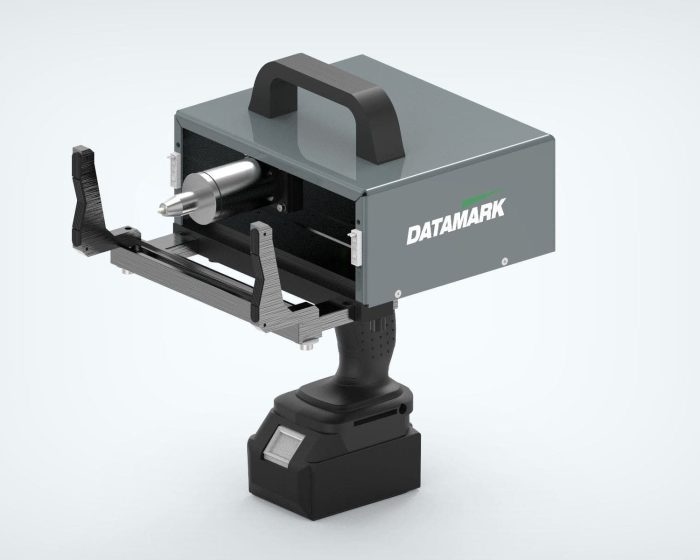

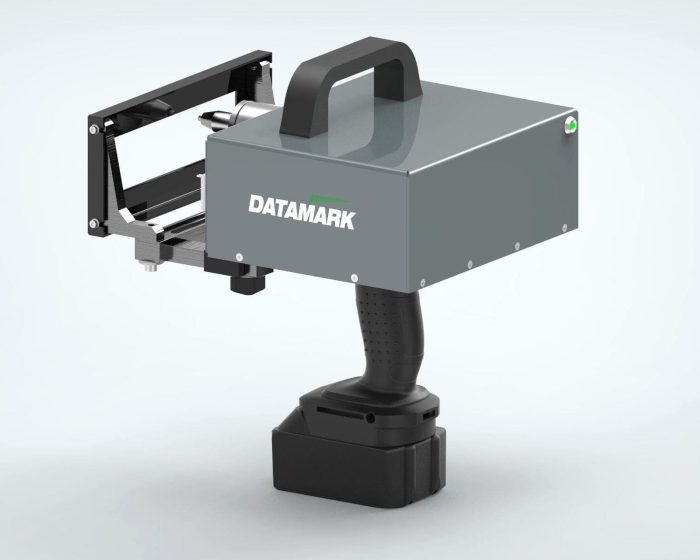

Datamark Portable dot peen marking machine MOBILE MP-150 x 30 mm

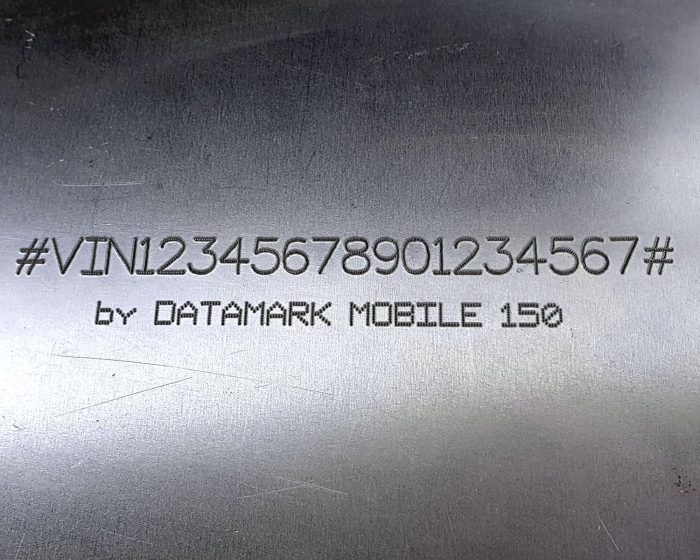

The MP-150 Mobile marker provides all the same features as the MP-50 model plus a larger 150 x 30 mm marking window, specially suitable for marking larger texts and numberings on big parts;  for frames marking, large tubes and pipes marking , profiles marking, VIN number marking on chassis, etc.
The MP-150 MOBILE marking machine offers almost infinite possibilities, combining a great ease of handling, high marking performance and a great operational autonomy in the most demanding marking applications that require totally free mobility for the user.

Technical specifications:


• Compact, robust, ergonomic and lightweight design.
• Fast and powerful electromagnetic marking head.
• 150 x 30 mm marking window (6″ x 1.2″).
• Flat X-Y axis movement of the marking head (no pivoting).
• Easy-grip handle with a push button to trigger the marking cycle.
• Adjustable positioning front feet to reach the most difficult areas.
• Automatic lighting system of the marking zone.
• High capacity 18v 5.0 Ah Li-Ion battery.
• High operating autonomy; up to 3 hours of continuous marking.
• Easy marking programming using mobile application.
• Smartphone connection via wireless WiFi.
• Total weight 3 Kg, battery included

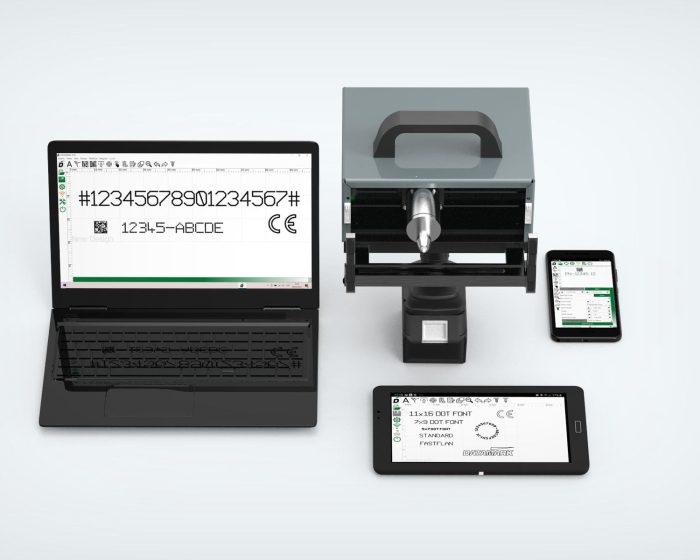

Mobile application:


• Mobile application for marking design and programming available for Android Smartphones.
• Easy, intuitive and fully featured responsive marking software.
• Automatic marking data programming; serial numbers, time, date and shift codes.
• Selectable dot matrix marking fonts; 5×7, 7×9, 11×16, and continuous line fonts.
• Adjustable characters height, width, angle and circunferential position
• Programmable marking speed, force and marking repetition.
• Datamatrix codes marking.
• Vector logos marking (PLT).
• On screen marking preview and trial run features included.
• Unlimited capacity for marking files storage.
• Password protection.
• Available for free download on the Google Play Store.

All product features, an overview of the standard equipment and options and a quick start guide can be downloaded in the download area as a pdf.
