SKF TLMP 1008/230V MultiPoint Grease System for 8 points 230V, 1L
SKF TLMP 1008/230V MultiPoint Grease System for 8 points 230V, 1L
€ 1605.31 1,605.31 incl. VAT (1,349.00 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: SKF
Country of origin: DE/0004
Customs tariff number: 84798960
Weight per piece: 6.7 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.

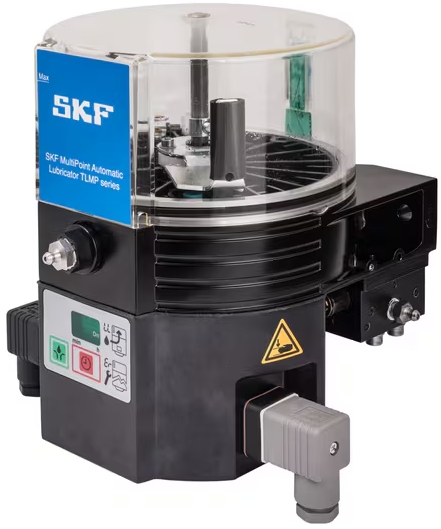

SKF TLMP 1008/230V is an automatic lubricator for up to 8 lubrication points, designed for industrial and mobile applications. The complete system features easy programming, robust protection, and versatile control options.
Applications
- Industrial plants with multiple lubrication points
- Agricultural machinery
- Construction and off-road vehicles
Features & Benefits
- Supports 1–8 outlets with plug-in ports
- Agitator prevents grease separation – suitable for NLGI grade 2 and 3 lubricants
- LED keypad for easy operation and status monitoring
- Internal and external alarms for empty reservoir or blocked line
- Remote notification and external machine control enabled
- IP67 – dust-, water- and vibration-resistant
- DIN electrical connector EN 175301-803 (Type A)
Technical Specifications
| Model | SKF TLMP 1008/230V |
| Type | Automatic MultiPoint Lubricator |
| Lubrication outlets | 1–8 |
| Discharge rate | 0.1–40 ml/day per outlet |
| Minimum discharge setting | 0.1 ml/day |
| Maximum discharge setting | 40 ml/day |
| Suitable grease consistency | NLGI grade 2 and 3 |
| Max. supply line length | 5,000 mm |
| Reservoir volume | 1,000 ml |
| Drive mechanism | Electromechanical |
| Power supply | External electric |
| Voltage | 210–250 V AC |
| Max. current | 0.5 A |
| External control | Yes |
| Alarms | Yes – empty reservoir, blocked line (internal & external) |
| Mounting position | Vertical |
| Protection class (IP) | IP 67 |
| Housing material | Metal |
| Electrical connection | DIN 43650/A (EN 175301-803) |
| Ambient temperature range | –25 °C to +70 °C |
| Max. operating pressure | 205 bar |
| Dimensions (W × L × H) | 237 × 214 × 231 mm |
| Product weight | 6.27 kg |
| eClass code | 23-06-10-14 |
| UNSPSC code | 15121902 |

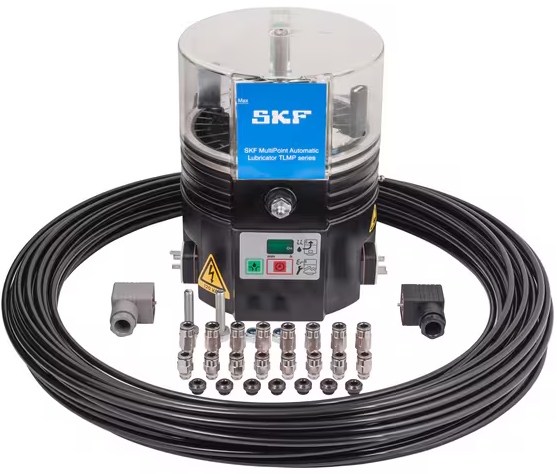

Scope of Delivery
- 1x TLMP 1008/230V pump
- 1x mounting hardware set
- 2x electrical connectors
- 1x 20 m nylon tube (6 × 1.5 mm)
- 8x straight tube fittings
- 8x straight tube connectors
- 7x outlet sealing plugs
SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 7316577289827 | TLMP 1008/230V |
