SKF TLGB 21/230V Ready-to-use Cordless Grease Gun 20V with LCD & Case

SKF TLGB 21/230V Ready-to-use Cordless Grease Gun 20V with LCD & Case

pics/skf/TLGB21/skf-tlgb-21-hochdruck-akku-fettpresse-230v-fuer-din-400g-kartuschen.jpg

€ 464.04 464.04 incl. VAT (389.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: SKF

Country of origin: DE/0004

Customs tariff number:

Weight per piece: 7.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four + zero = ?

( Examples: two + three = 5, three - five = -2 )

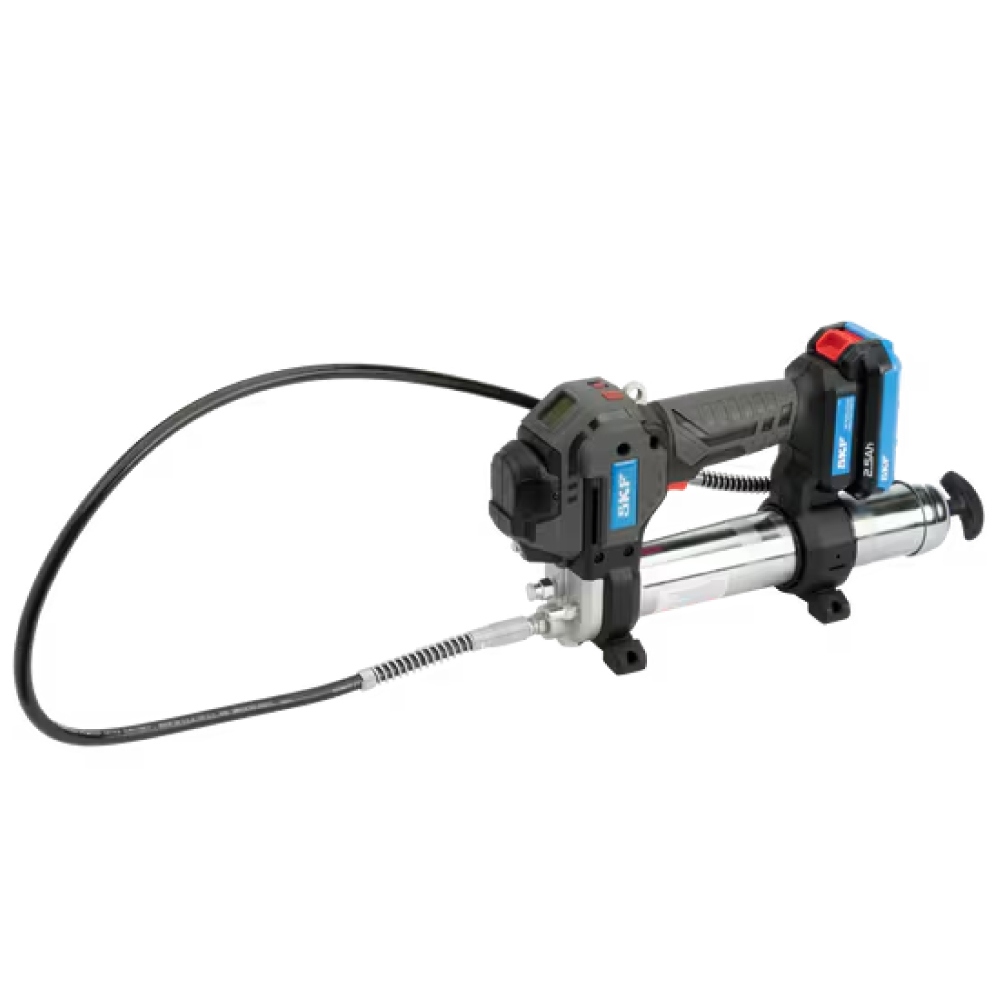

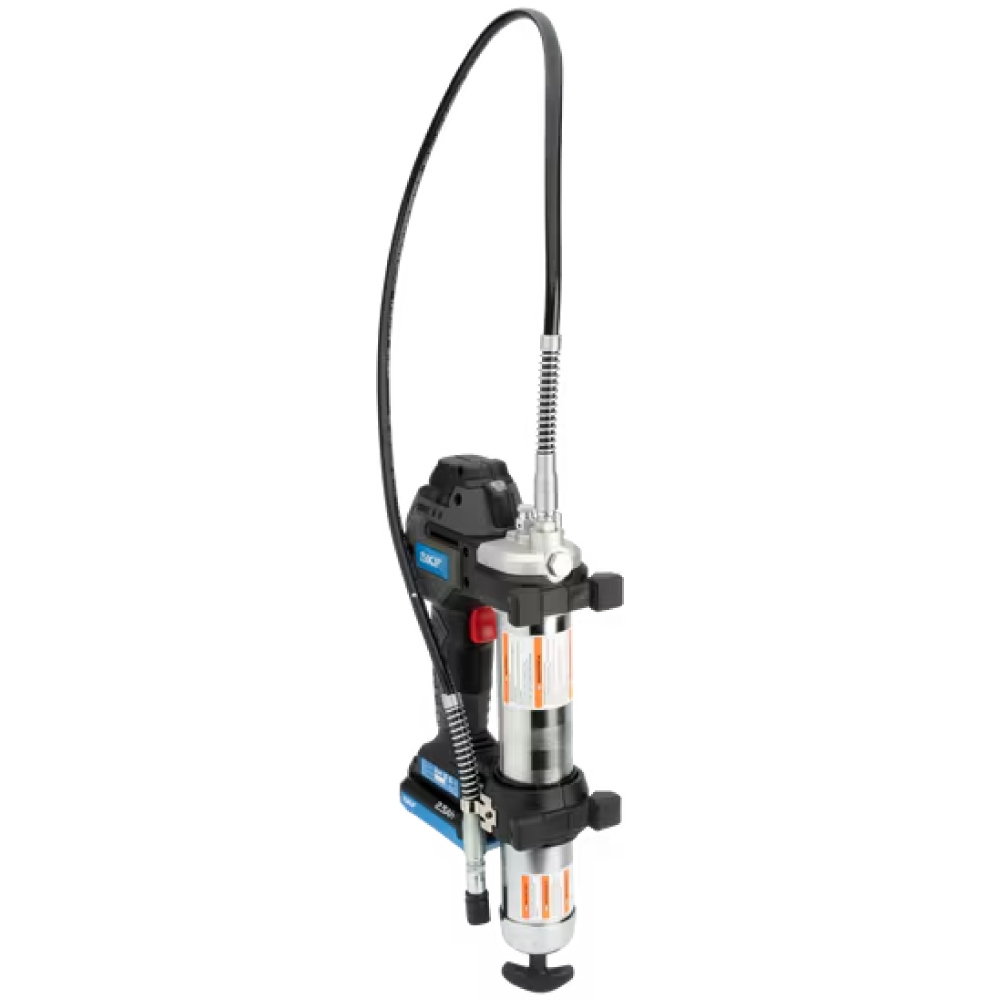

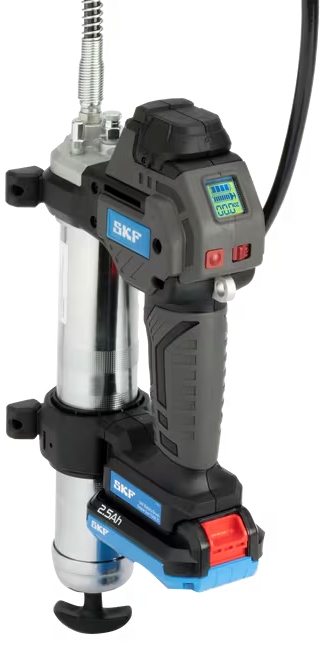

SKF® TLGB 21 is a cordless high-performance grease gun with LCD display, grease flow meter and dual-speed transmission. It provides precise, controlled lubrication with adjustable flow rate and is compatible with standard 400 g cartridges as well as bulk filling from large containers.

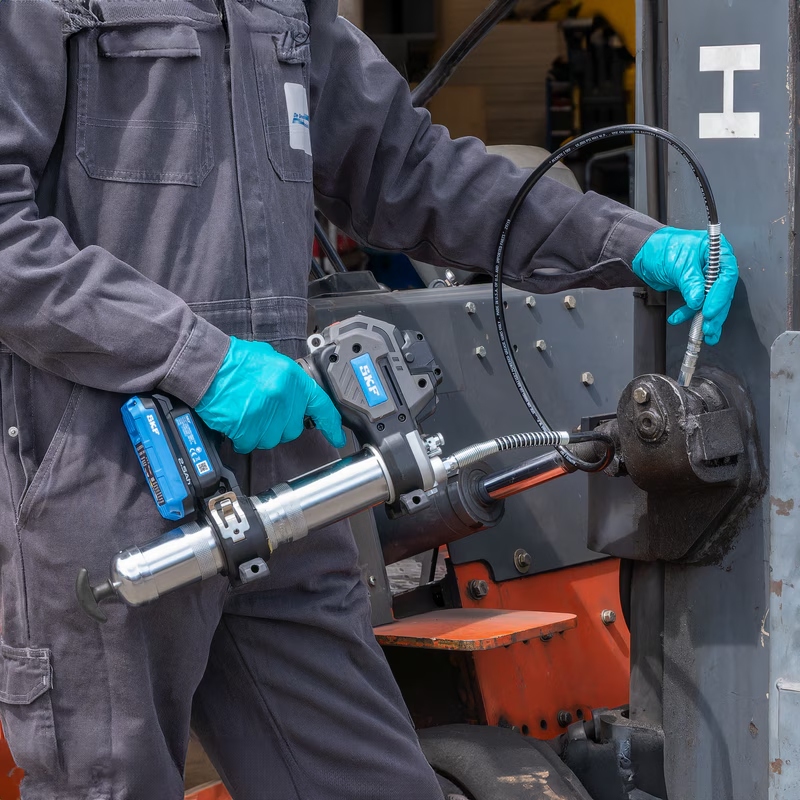

Applications

Industrial lubrication of bearings, machines and joints
Agricultural and construction machinery
Maintenance of production equipment

Features & Benefits

20 V lithium-ion battery-powered grease gun – mobile, powerful, and durable

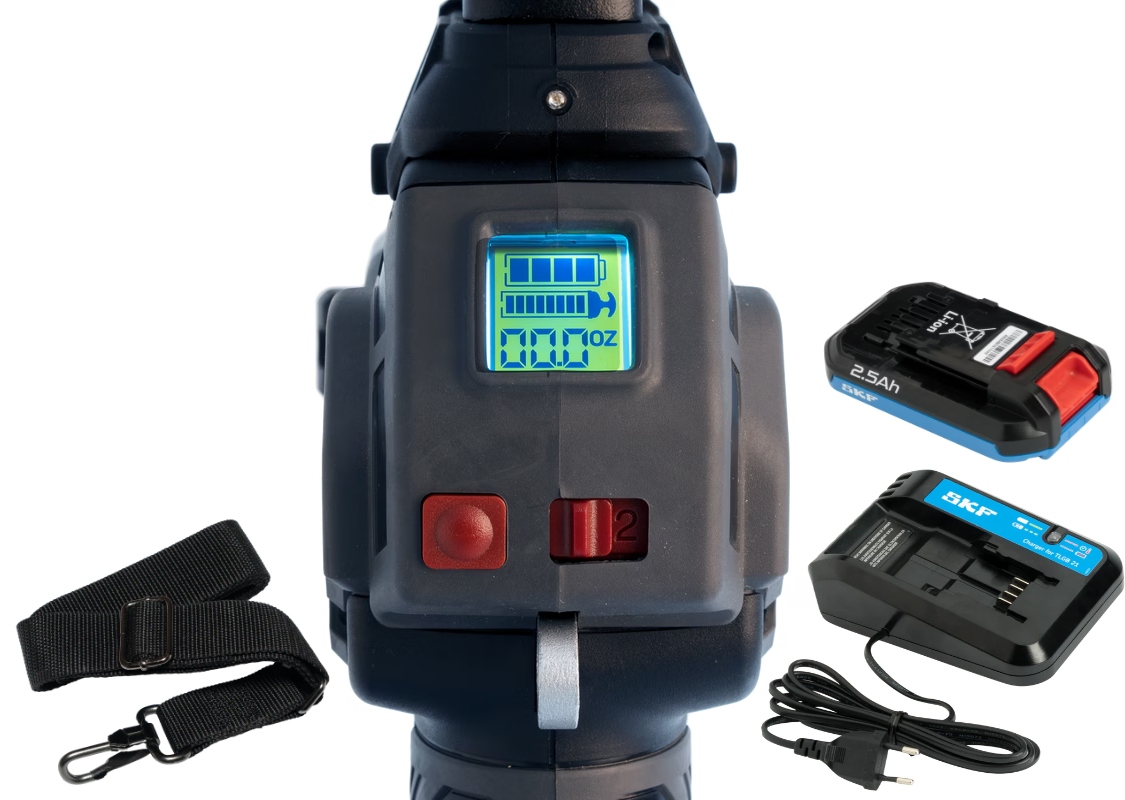

Integrated LCD for precise lubrication control and alerts
Dual-speed setting for customized flow adjustment
LED work light for poorly lit environments
Bleeder valve prevents air pockets
Spring guards on hose to prevent kinks and wear
Multifunction display warns of blockages or loss of suction
Stable 4-point stand for secure positioning during operation
Optional Bluetooth module for app-based diagnostics

Technical Data

Model	SKF TLGB 21/230V
Input voltage	230 V AC / 50–60 Hz
Operating voltage	20 V DC (Li-Ion)
Battery capacity	2.5 Ah (optional 4.0 Ah)
Flow rate	110 g/min (low), 170 g/min (high)
Max operating pressure	400 bar
Peak pressure	700 bar
Cartridges per battery charge	Approx. 24 (2.5 Ah) / 40 (4.0 Ah)
Hose length	1,220 mm
Display functions	Grease quantity, battery level, cartridge fill, warning messages
Carrying case dimensions	645 × 390 × 140 mm
Device weight	3.36 kg
Total weight (with case)	6.9 kg

Scope of Delivery

SKF TLGB 21 cordless grease gun (230 V)
Li-Ion battery 20 V, 2.5 Ah (TLGB 21-2)
Charger 230 V / 50–60 Hz (TLGB 21-5)
High-pressure hose 1,220 mm with coupler (TLGB 21-3)
Grease tube assembly (TLGB 21-4)
Shoulder strap (TLGB 21-1)

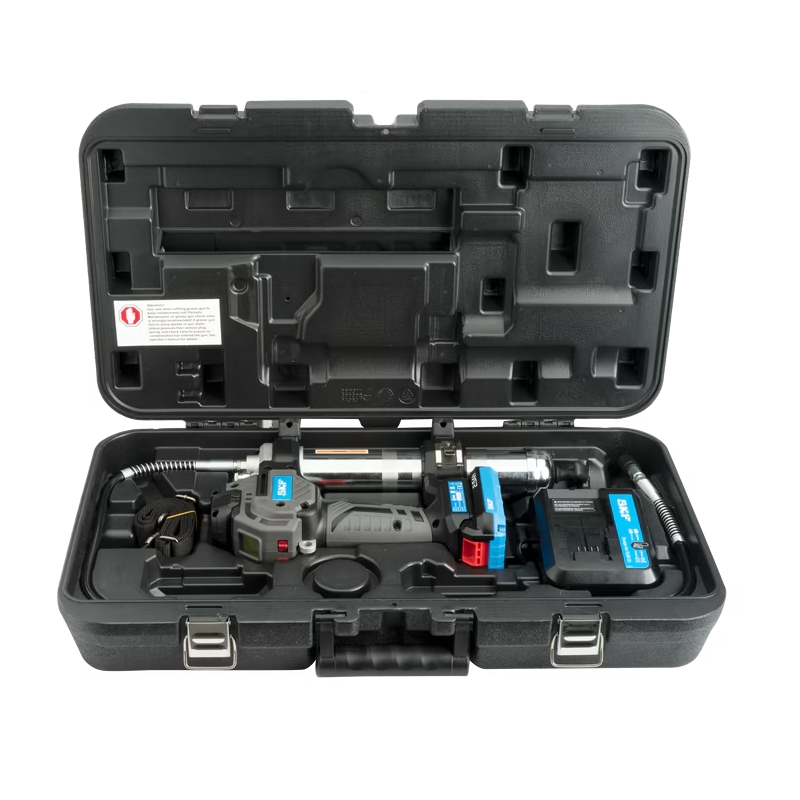

Durable carrying case with insert

Grease Supply Options

Compatible with standard 400 g (14 oz) DIN cartridges
Also supports bulk filling (454 g) from large drums using a pump
Manual suction fill also possible

Information on product safety (Manufacturer, Contact)

SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com

skf-tlgb-21-230-v-ready-to-use-cordless-grease-gun-tds-datasheet-en.pdf (436.62 KB)
