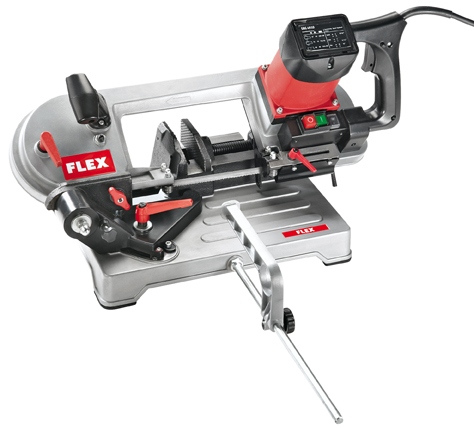

Flex 390.518 SBG 4910 Metal-cutting band saw with swivelling saw frame

Flex 390.518 SBG 4910 Metal-cutting band saw with swivelling saw frame

€ 571.14 571.14 incl. VAT (479.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: FLEX

Country of origin: CN/0720

Customs tariff number: 84672290

Weight per piece: 18.0 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two + two = ?

( Examples: two + three = 5, three - five = -2 )

2 belt speeds: for sawing solid and hollow sections
Recommended belt speeds: Step I, solid steel, stainless steel V2A, aluminium; Step II, steel, stainless steel V2A, aluminium tubes
Cutting without a stand: with 90° straight cut, round and square section, max. 90 mm, rectangular section max. 150 x 90 mm
Continuous tool-free adjustment of the cutting angle from 0° - 45°
With stand, easy release for freehand use

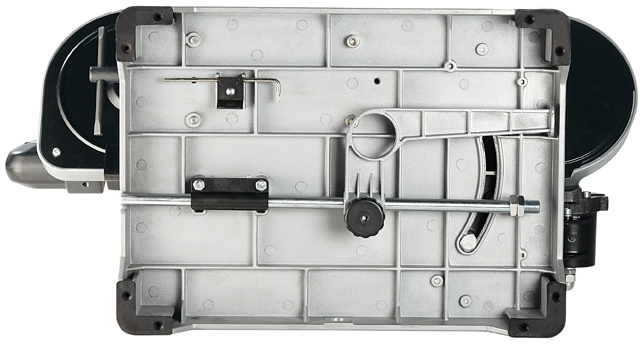

With bracket locking device: for mobile applications and easy transport

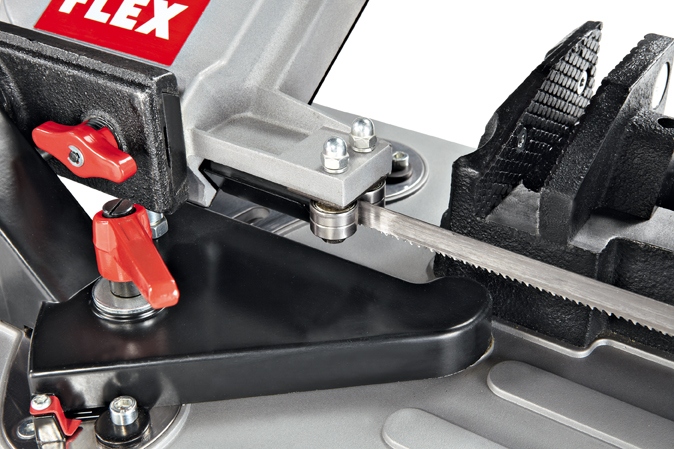

3-point ball-bearing bandsaw blade guide for optimum blade control
Safety switch: prevents uncontrolled reactivation following power interruptions
Work without coolant
Especially in fire hazardous surroundings the SBG for spark free cutting of metal

Specifications

Power input: 850 watt
Power output: 445 watt
Dimensions of saw band: 1335 x 13 x 0,65 mm
Belt speed per minute: 60 / 80 m/min
Size ( W x L x H) 640x310x390 mm
Max. cutting range: round cross sectional cut at 45°/90° : 68 mm / 80 mm
Max. cutting range: square cross sectional cut at 45°/90°: 60 mm / 80 mm
Max. cutting range: rectangular cross sectional cut at 45°/90° : 68x55 mm / 100x80 mm
Cable length: 4,0 m
Weight of saw arm: 7,9 kg
Weight (complete unit): 18,0 kg

Standard equipment
