Audinnov Helios CCF2 2,5 insulating ladder rope 2 segments 4,0m
Audinnov Helios CCF2 2,5 insulating ladder rope 2 segments 4,0m
€ 1172.8 1,172.80 incl. VAT (985.55 excl. VAT), per piece *
Availability: shipping in 1-2 weeks
Packaging unit: 1 piece
Manufacturer: Audinnov
Country of origin: FR/0001
Customs tariff number: 3926909790
Weight per piece: 14.0 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Helios® CCF insulating ladder, rope operated, 2 segments, 18 rungs, max 4,0m
HELIOS 2 or 3 section fiberglass extension ladder has non-conductive siderails making this ladder safe for live-working.
Product Features
HELIOS 2 or 3 section fiberglass extension ladder has non-conductive siderails making this ladder safe for live-working.
Product Features
- Closed profil with rounded corners make it rigid & light
- 2 segments with 9 rungs each
- Heavy Duty extruded rope operated rung lock
- 10 mm diameter rope centered and positioned on the operator side, breaking strength 1,500 daN

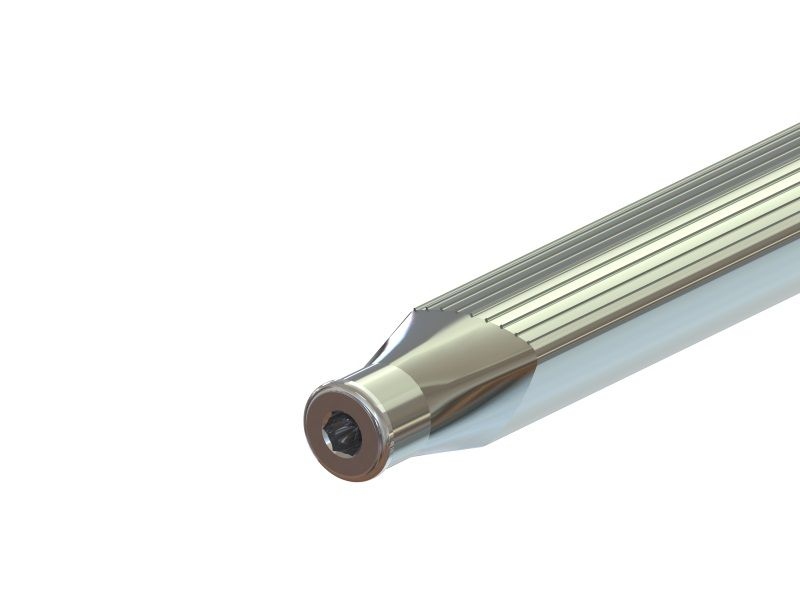

- “D” shaped rungs with “ULTRA-GRIP” ribbed surface, 0.3 mm deep
- Unique assembly technique extends product life
- Flat surface rung, 31 mm deep
- Ergonomic rung spacing of 250 mm
- Orange coloured glass reinforced composite profile
- Low-friction nylon coated guides
- Ribbed rubber non-slip feet with drainage holes
- 100 mm diameter wall wheels
- The Helios range is fully complaint to EU safety standard EN50-528
- The only ladder on the market marked Live working-Low Voltage <1,000 V a.c /1,500 V d.c.
- Dielectric test report - APAVE 6543040-001-1
- Full Product certification LNE N120088
- Folded length: 2,5m
- Extended length: 4,0m
- All roller ladder models with AUDINNOV safety platform are compliant with PIRL NF P93.353 and EN 131-7.
- These standards cover portable scales with an integrated work platform used as a means of access at height to reach the workstation constituted by the platform.
- These standards are essential to define the characteristics of these equipments to prevent accidents, often serious, sometimes fatal.
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 00101101 CCF2 2,5 |
