3M Scotch Super 33+ Vinyl Electrical tape, black 19mm x 20m

3M Scotch Super 33+ Vinyl Electrical tape, black 19mm x 20m

€ 10.12 10.12 incl. VAT (8.50 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: 3m Scotch

Country of origin: US/0400

Customs tariff number: 48239085

Weight per piece: 150 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - eight = ?

( Examples: two + three = 5, three - five = -2 )

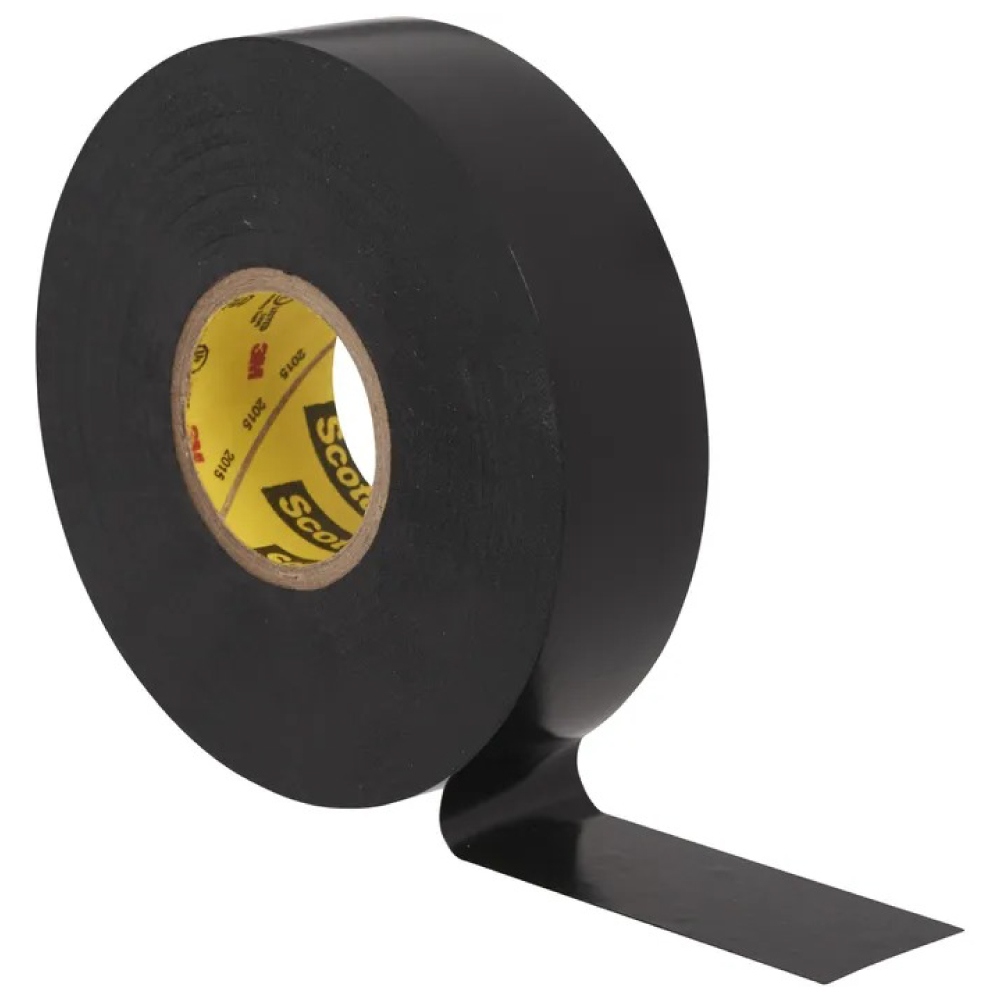

Scotch® Super 33+™ Vinyl Electrical Tape is a premium grade, 0.18 mm thick, all-weather vinyl-insulating tape. It is designed to perform continuously in ambient temperatures up to 105°C.

Pack size(s): 19 mm × 20 m

Specifications / approvals

UL Listed; UL 510 Standard “Insulating Tape” (product category OANZ), File E129200. CSA Certification; Standard C22.2 No.197-M1983 “PVC Insulating Tape,” File LR 48769. VDE Marks License no. 130462 for Type 7: IEC 60454-3-1-7/F-PVC P90. Meets A-A-55809. For RoHS information, please visit www.3M.com/RoHS.

Applications

Primary electrical insulation for all wire and cable splices rated up to 600 volts and up to 105°C.
Primary electrical insulation for 600 volts bus applications and protective jacketing for low and high voltage bus.

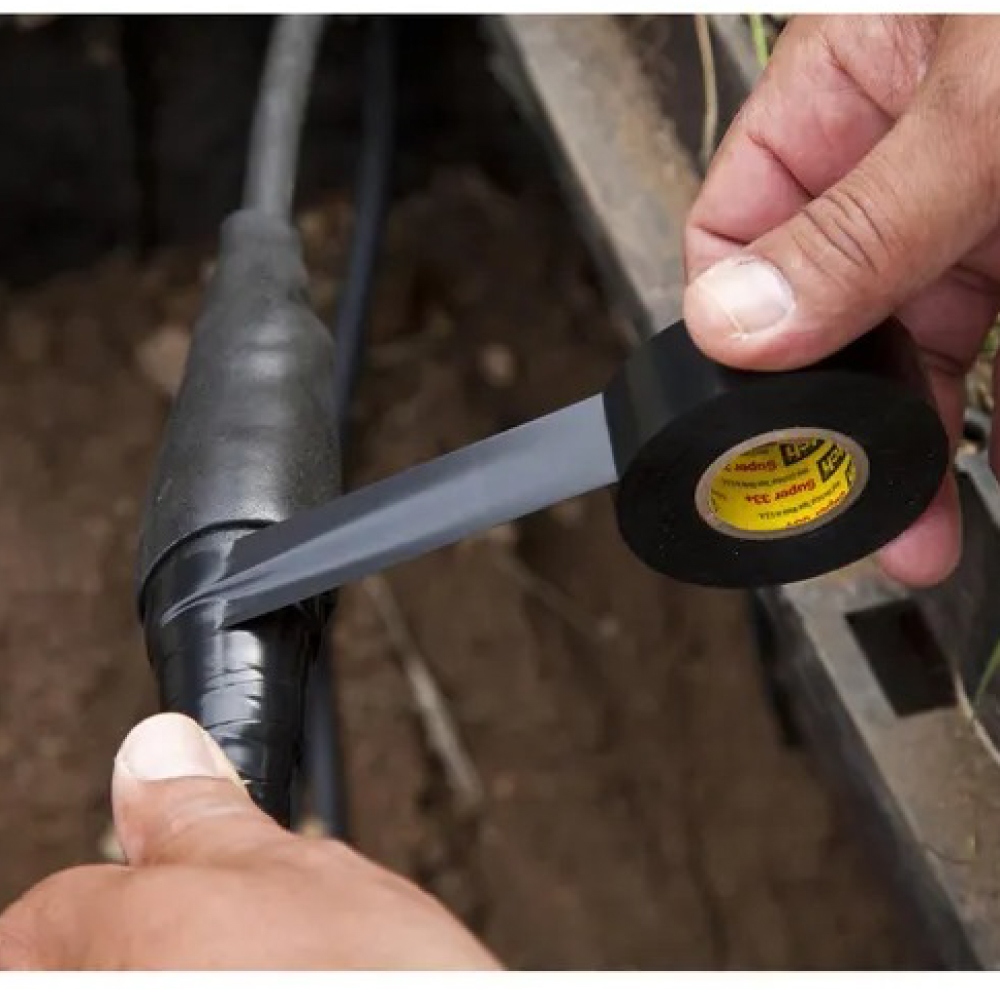

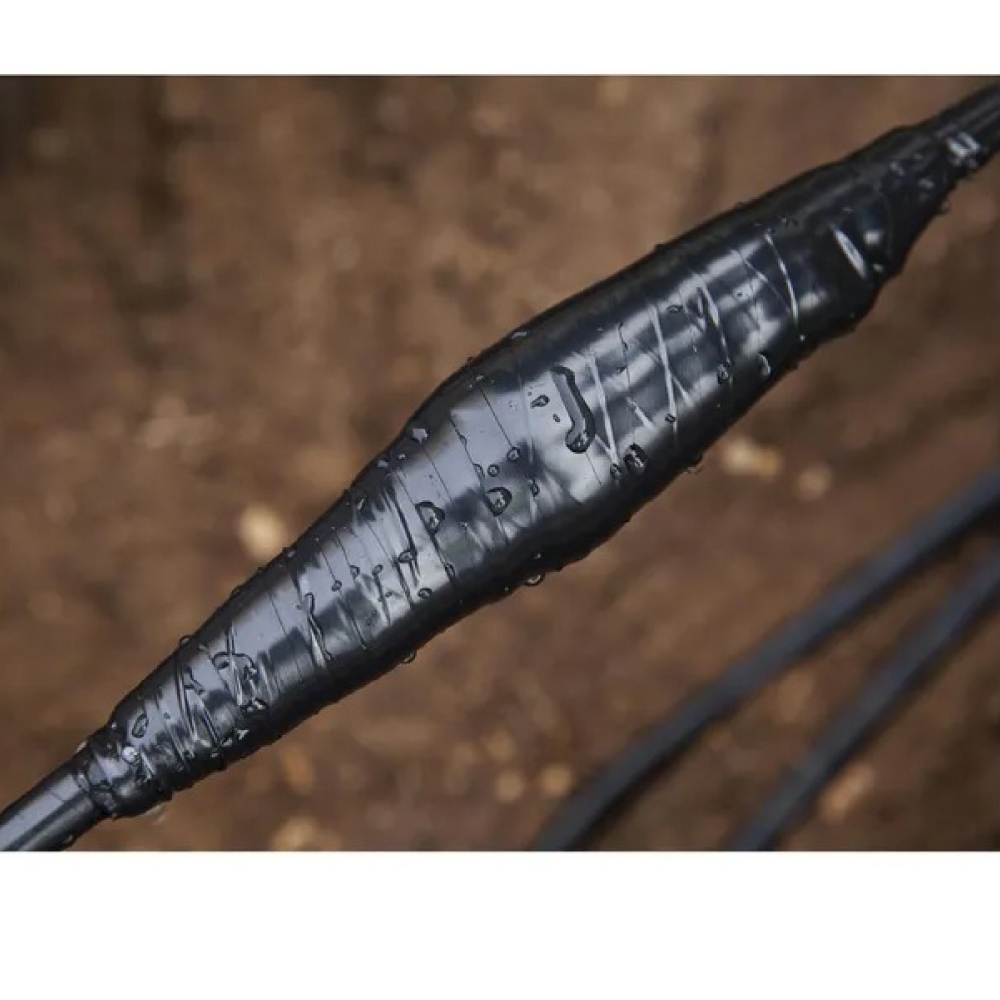

Protective jacketing for high voltage cable splices and repairs.
Harnessing of wires and cables.

Characteristics

The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk.
Polyvinyl chloride (PVC) backing.
Pressure-sensitive rubber-based adhesive.
Compatible with solid dielectric cable insulations.
Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins.
Inhibits corrosion of electrical conductors.
For indoor or outdoor applications.

Technical specifications

Property	Method	Value
Temperature rating	UL 510	80°C
Continuous operating temperature	IEC 60454-3-1	-18°C up to 90°C
Max. temperature	CSA C22.2	105°C
Colour	—	Black
Thickness	—	0.18 mm
Adhesion to steel (22°C)	ASTM D1000	3.0 N/10 mm
Adhesion to steel (-18°C)	ASTM D1000	6.5 N/10 mm
Adhesion to backing (22°C)	ASTM D1000	3.0 N/10 mm
Adhesion to backing (-18°C)	ASTM D1000	6.5 N/10 mm
Breaking strength (22°C)	ASTM D1000	26.3 N/10 mm
Ultimate elongation (22°C)	ASTM D1000	250%
Ultimate elongation (-18°C)	ASTM D1000	100%
Flammability (maximum)	UL 510 / ASTM D-1000	1 sec. / 4 sec.
Voltage rating	UL 510	600V
Dielectric breakdown	ASTM D1000	8 kV (45 kV/mm); 90% of std. at high humidity
Insulation resistance	ASTM D1000 (High humidity method)	>1×10⁶ Megohms

Information on product safety (Manufacturer, Contact)

3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
