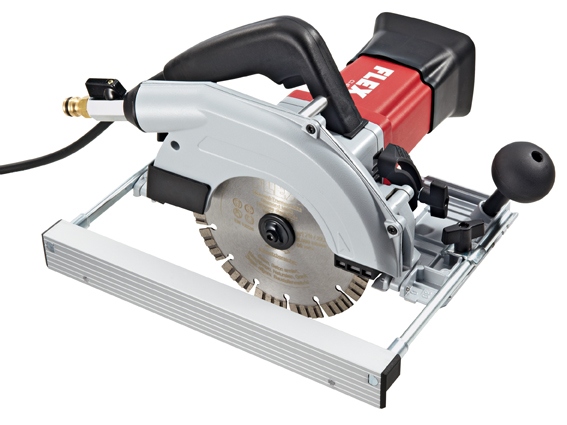

Flex 374.016 CS 60 WET Diamond stone separator

• High-performance motor: extra powerful for stone cutting and joint milling
• Continuous cut depth setting from 0-60 mm, with rail guide up to 54 mm. In the mitre cut from 0-44 mm, with guide rail up to 38 mm
• Continuous angle adjustment for mitre cuts from 0-45°
• Cut marking at the base plate from 0°/30°/45° for rapid orientation
• High-quality magnesium die-castings for protective cover and base plates
• Motor protection made of rubber prevents the direct intake of spray water
• Water supply: for an effective cooling of the diamond blade
• Quick-fit brass coupling: for 1/2" water hose
• GFCI operator protector circuit breaker: integrated in cord

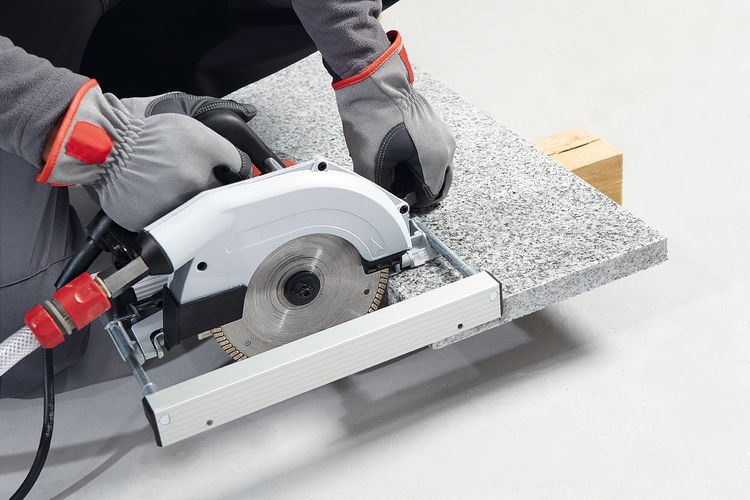

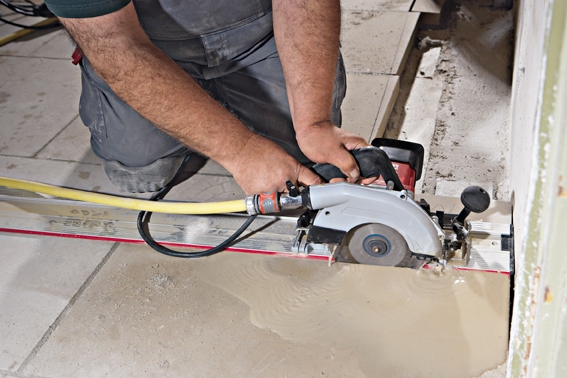

• Ideal for: Inserting water grooves in window sills or steps, work tops, facade slabs, terazzo slabs in garden design & landscaping, joint renovation in the floor
• Spindle lock

Specifications:

• Power input 1400 watt
• Power output 840 watt
• No load speed 6200 rpm
• Diamond cutting disc Ø / arbor (inside Ø) 170 / 22,2 mm
• Cutting depth / with guide rail 60 / 54 mm
• Mitre cuttings 0-45 °
• Depth of cut - mitre cut 5-44 mm
• Depth of cut - mitre cut with guide rail 0-38 mm
• Cable length 4,0 m
• Weight 4,5 kg

Standard equipment:

• 1 diamond cutting disc with segmented cutting edge 347.515
• 1 wrench for saw blade change 359.343
• 1 parallel guide fence 350.613

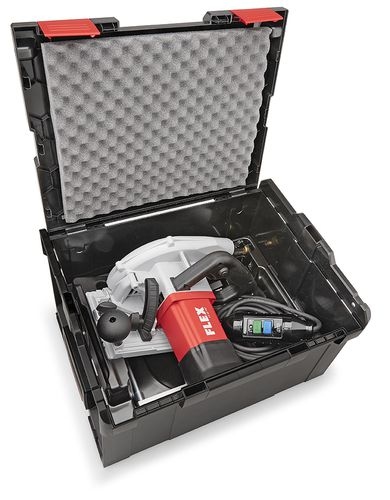

• 1 carrying case L-BOXX® 238 414.093
• 1 case insert 436.771

FLEX-Elektrowerkzeuge GmbH, Bahnhofstraße 15, 71711 Steinheim, GERMANY, +49 7144 828 0, [email protected], www.flex-tools.com
