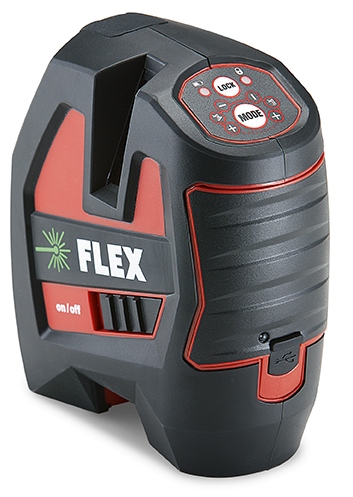

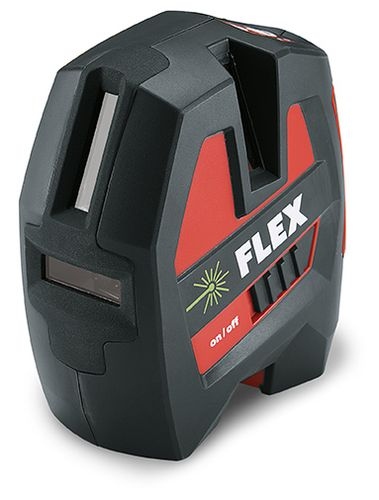

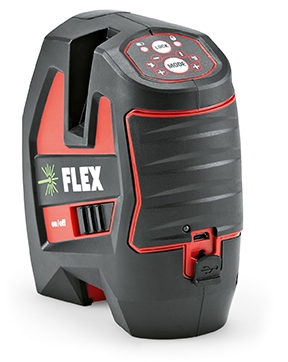

FLEX 456.004 ALC 3/1-G Self-levelling crossline laser

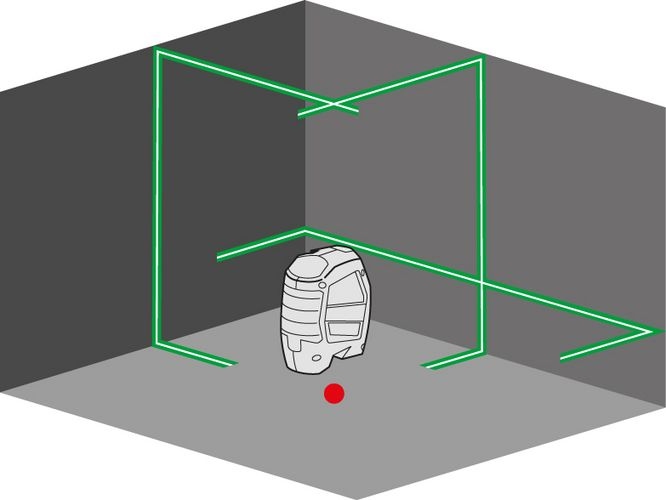

• With one horizontal and two vertical laser lines at a 90° angle plus plumb, can be switched individually
• Plumb function
• Specially coated glasses ensure clean and high-precision laser lines.
• The green line is easily visible, even in bad lighting conditions
• Green laser diode
• Self-levelling
• Optical warning signal when self-levelling range exceeded
• Self-levelling which can be switched off

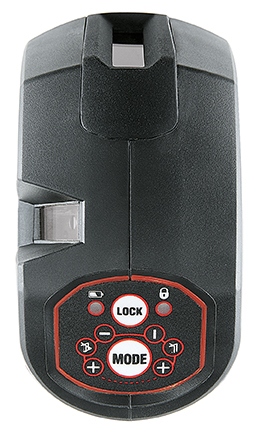

• Simple operation
• Transportation lock

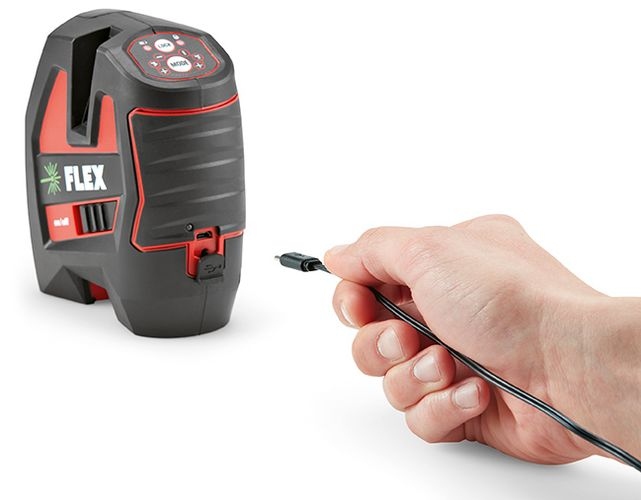

• Integrated Li-polymer rechargeable battery

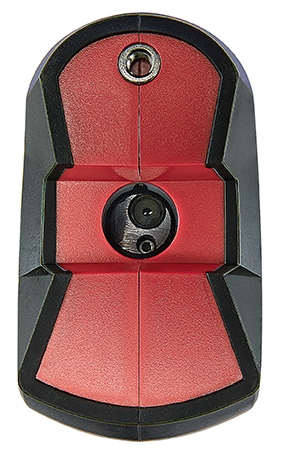

• 1/4" thread for tripod

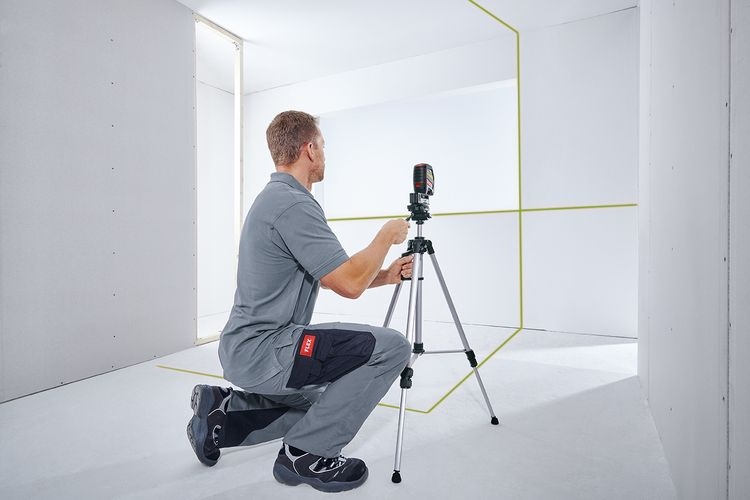

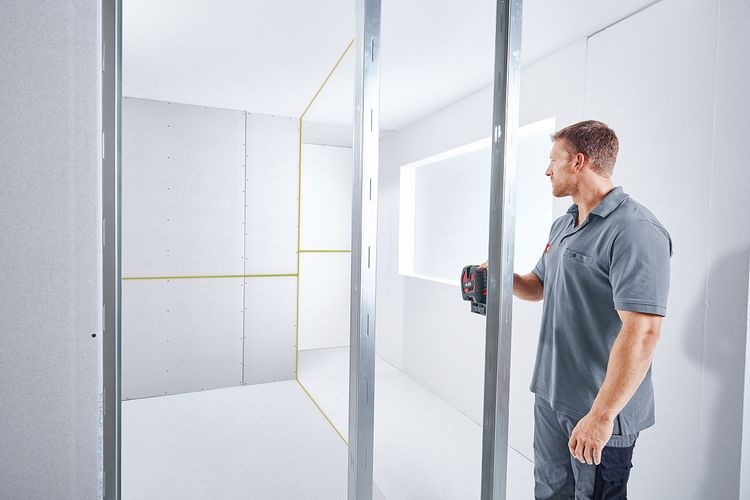

• Ideal for aligning the framework

Technical attributes

• Number of lines1 horizonta l/2 vertical plus plumb
• Visible area lines 90°
• Precision ± 0.3 mm/m (plumb ± 0,6 mm/m)
• Self-levelling range ± 4 °
• Max. working range 20 m / plumb 5 m
• Operation duration 6 h
• Temperature range -5° - +50 °C
• Laser class 2
• International Protection IP 54
• Integrated battery 3,7 V 2000 mAh / Li-on
• Weight 0,53 kg

Standard equipment

• 1 wall bracket magnetic WB-M/S 1/4 ALC-Basic 428.167
• 1 USB-cable 1 piece
• 1 USB-charger 1 piece
• 1 carrying bag 1 piece
