Shell Vacuum Pump Oil S2 R 100 Rotary Vacuum Pump Oil 20L

Shell Vacuum Pump Oil S2 R 100 Rotary Vacuum Pump Oil 20L

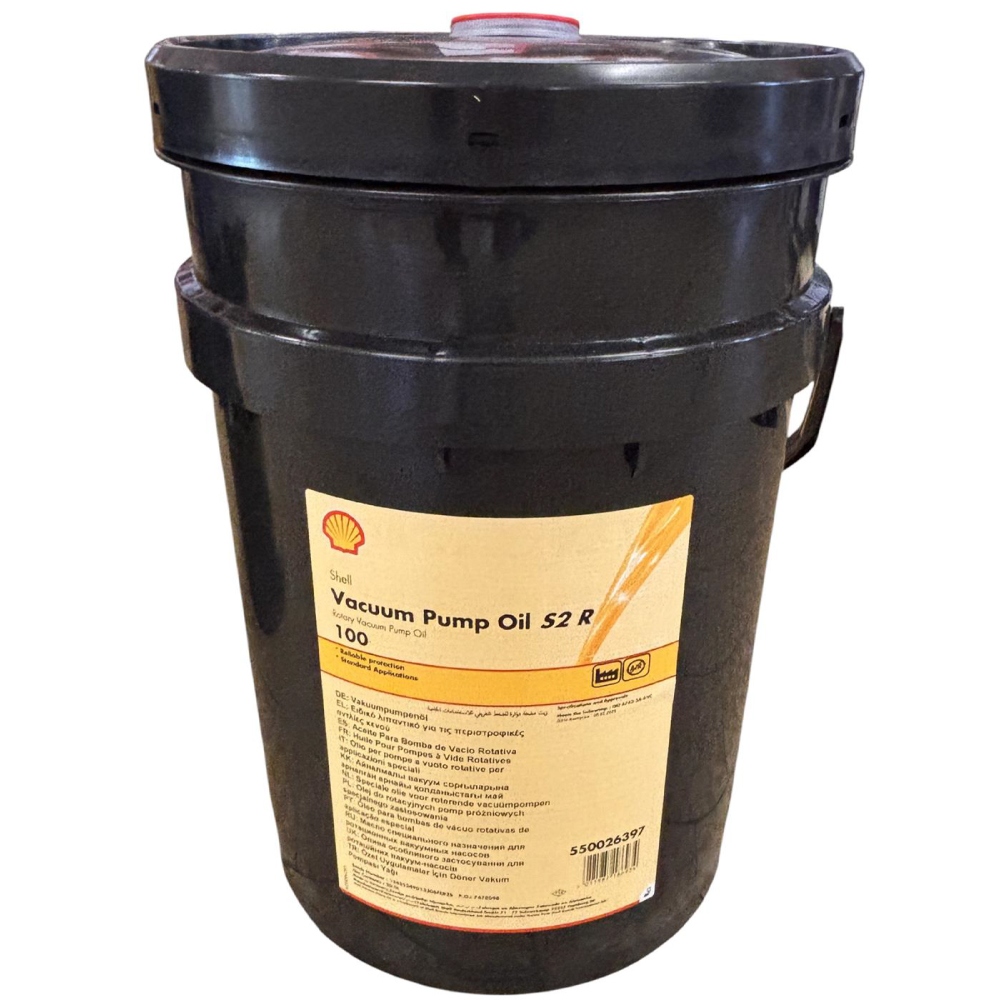

pics/Shell/Vacuum Pump Oil S2 R 100/shell-vacuum-pump-oil-s2-r-100-rotary-vacuum-pump-oil-iso-vg-100-20-l-01.jpg

€ 212 212.00 incl. VAT (178.15 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Shell

Country of origin: DE/0004

Customs tariff number: 27101999

Weight per piece: 20.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight - nine = ?

( Examples: two + three = 5, three - five = -2 )

Shell Vacuum Pump Oil S2 R 100 (formerly Shell Corena V 100) is rotary vacuum pump oil (ISO VG 100) formulated from selected premium performance, highly refined mineral oils for the effective lubrication of rotary and sliding vane vacuum pumps in standard applications.

Pack size: 20 L bucket
Also available in: 209 L drum

Applications

Rotary vacuum pumps
Sliding vane vacuum pumps
Most industrial rotary vacuum pump applications
Applications where ambient temperatures are above 0°C
Applications where maximum operating temperatures do not exceed 100°C
Vacuum pumps working in a vacuum range of 1000 mbar to 10^-2 mbar

Specifications and approvals

ISO 6743-3A-DVC
Used extensively by major OEMs throughout the world

Characteristics

Excellent resistance to oil degradation
Long service life with reduced tendency for sludge build-up and deposit formation
Outstanding wear and corrosion protection
Helps protect internal metal surfaces from corrosion and wear
Low vapour pressure base oils with a narrow boiling range
Helps maintain pump efficiency over extended maintenance periods

Technical specification

Manufacturer no.	550026397
ISO viscosity grade	100
Kinematic viscosity at 40°C	108 cSt
Kinematic viscosity at 100°C	11.8 cSt
Density at 15°C	882 kg/m³
Flash point COC	265°C
Pour point	-9°C
Neutralisation value	<0.04 mg KOH/g
Ash, sulphated	<0.01 %
Conradson carbon residue	0.05 %m
Vapour pressure at 0°C	8.40E-06 mbar
Vapour pressure at 25°C	5.33E-05 mbar
Vapour pressure at 50°C	4.67E-04 mbar
Vapour pressure at 100°C	8.40E-03 mbar
Vapour pressure at 150°C	0.11 mbar
Vapour pressure at 200°C	0.53 mbar

Product description

Shell Vacuum Pump Oil S2 R 100 is formulated from selected premium performance, highly refined mineral oils. This provides the low vapour pressure and high performance desired for the effective lubrication of rotary vacuum pumps.

Health, safety and environment

Shell Vacuum Pump Oil S2 R 100 is unlikely to present any significant health or safety hazard when properly used in the recommended application and good standards of personal hygiene are maintained. Avoid contact with skin. Use impervious gloves with used oil. After skin contact, wash immediately with soap and water. Take used oil to an authorised collection point. Do not discharge into drains, soil or water.

Shell Vacuum Pump Oil S2 R100, Shell Vacuum Pump Oil S2 R-100, Shell Vacuum Pump Oil S2R 100

Information on product safety (Manufacturer, Contact)

Shell Deutschland GmbH, New-Orleans-Straße 4, 20457 Hamburg, Deutschland, +49 (0) 40 6324 - 0, [email protected], www.shell.com

shell-vacuum-pump-oil-s2-r-100-tds-datasheet.pdf (202.86 KB)
