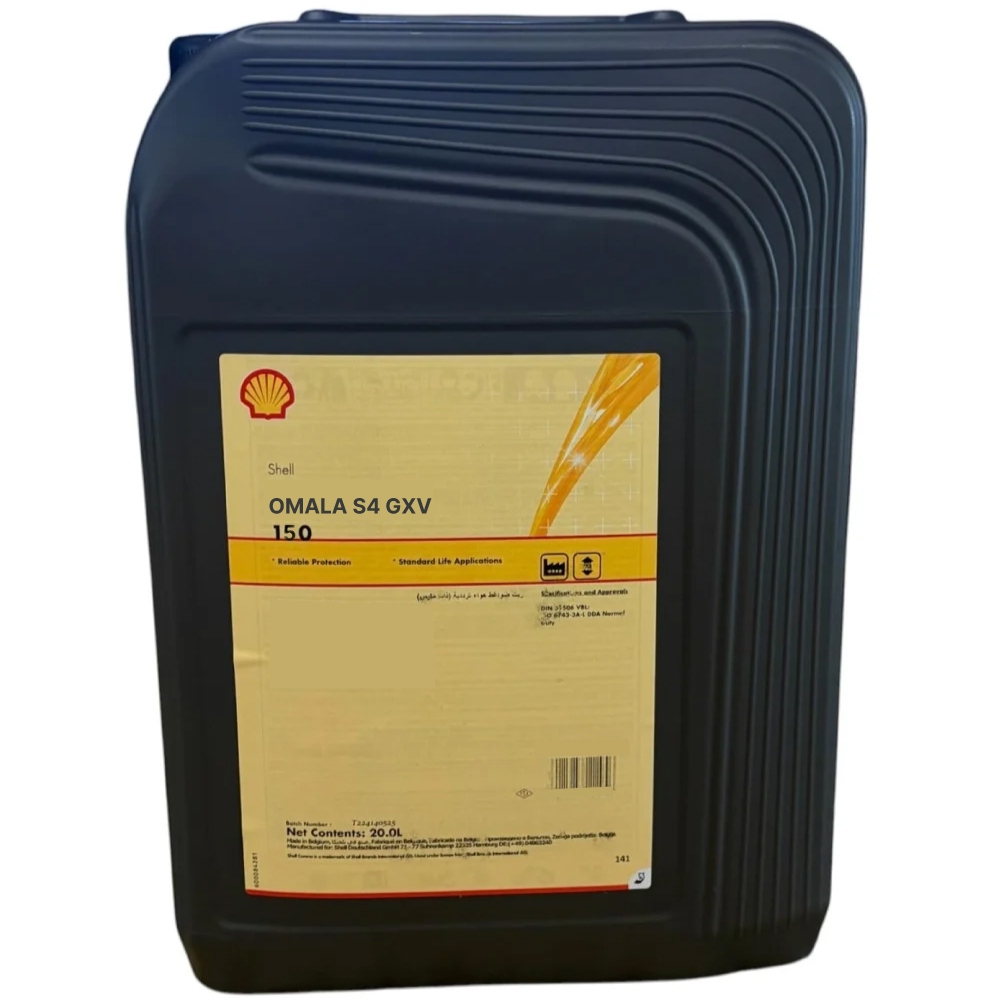

Shell OMALA S4 GXV 150 Synthetic Industrial Gear Oil CLP, 20L
€ 295.54 295.54 incl. VAT (248.35 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Shell
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 20.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Shell Omala S4 GXV 150 is an advanced synthetic industrial gear oil (ISO VG 150, CKD, CLP) designed for enclosed industrial gear systems operating under severe conditions, including high loads, wide temperature variations and difficult-to-access installations.
- Pack size: 20 L canister
- Also available in: 209 L drum
Applications
- Enclosed industrial gear systems operating under severe conditions
- Gear motor systems and other inaccessible installations where extra long oil life is required
- Industrial reduction gear systems operating under high load, low or elevated temperatures and wide temperature variations
- Lubrication of bearings and other components in circulating and splash-lubricated systems
Specifications & approvals
- ISO 12925-1 Type CKD
- ANSI/AGMA 9005-F16
- DIN 51517-3 (CLP)
- China National Standard GB 5903-2011 CKD
- AIST (US Steel) Req. No. 224
- Siemens AG approval for Flender gearboxes and gear motors (ISO 150-680)
Benefits
- Long oil life and extended service interval potential compared to conventional industrial gear oils
- Excellent load carrying capacity and high resistance to micro-pitting for gear and bearing protection
- Very good wear and corrosion protection, even in the presence of water and solid contamination
- Improved low temperature performance and reduced friction compared to mineral oil-based products
- Excellent compatibility with seals, paints and sealants
Technical data
| Kinematic viscosity at 40°C (ASTM D445) | 150 mm²/s |
| Kinematic viscosity at 100°C (ASTM D445) | 22 mm²/s |
| Viscosity index (ASTM D2270) | 169 |
| Flash point, COC, minimum (ASTM D92) | 240 °C |
| Pour point (ASTM D97) | -45 °C |
| Density at 15°C (ASTM D4052) | 862 kg/m³ |
| Four Ball EP weld load, minimum (ASTM D2783) | 250 kg |
| FZG load carrying test, failure load stage, minimum (A/8.3/90) | 14 |
Product description
Shell Omala S4 GXV 150 is formulated with specially selected synthetic base fluids and an advanced additive system to provide long service life, strong resistance to breakdown at high temperatures, high micro-pitting protection and excellent compatibility with commonly used sealing materials. It is particularly recommended for Flender gearboxes and gear motors, gear motor systems and industrial reduction gears requiring extended oil life.
Compatibility & miscibility
- Compatible with petroleum mineral oil-based industrial gear lubricants
- No special change-over procedure is necessary
- To achieve full performance benefits, the product should not be mixed with other oils
- Compatible with a wide range of seals, including nitrile rubber and fluoroelastomers
Handling & storage
- Avoid contact with skin
- Use impervious gloves with used oil
- After skin contact, wash immediately with soap and water
- Take used oil to an authorised collection point
- Do not discharge into drains, soil or water
- Ensure oil systems are clean and free from contamination
Shell Deutschland GmbH, New-Orleans-Straße 4, 20457 Hamburg, Deutschland, +49 (0) 40 6324 - 0, [email protected], www.shell.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 5011987033986 | 550070634 |
