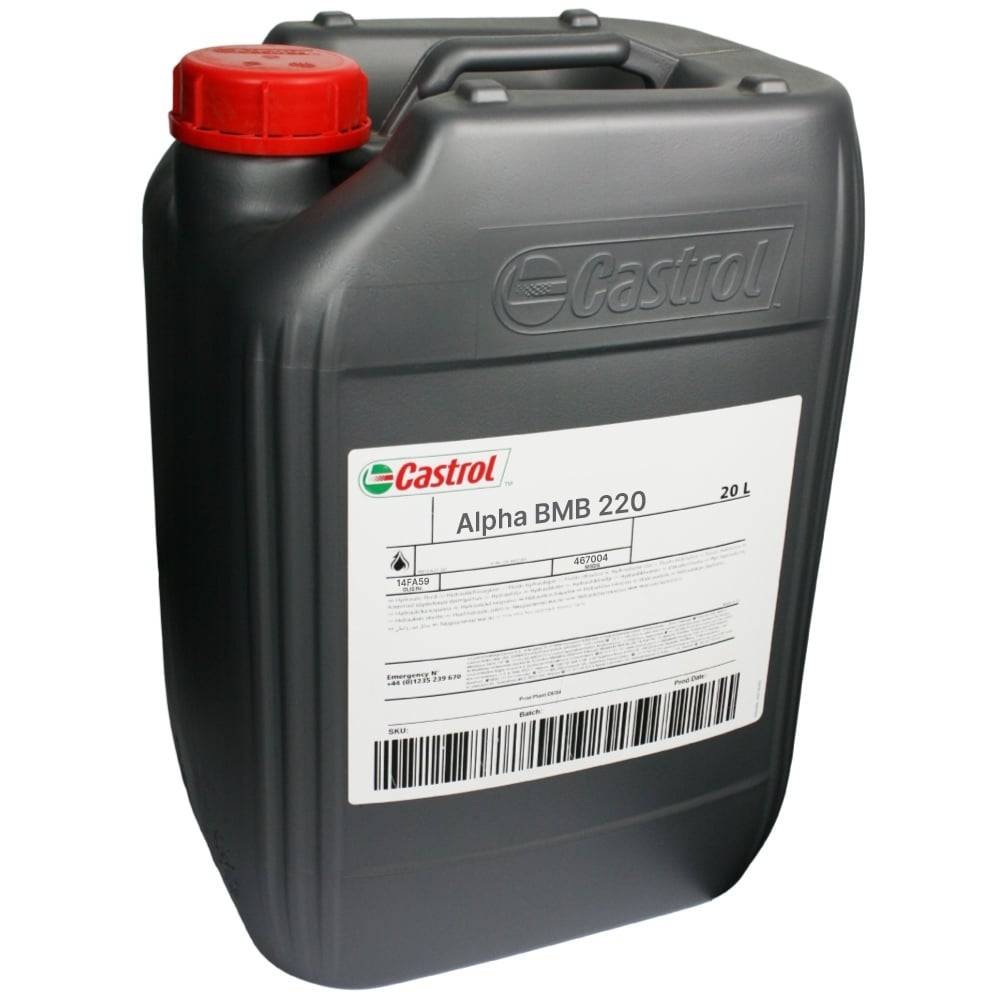

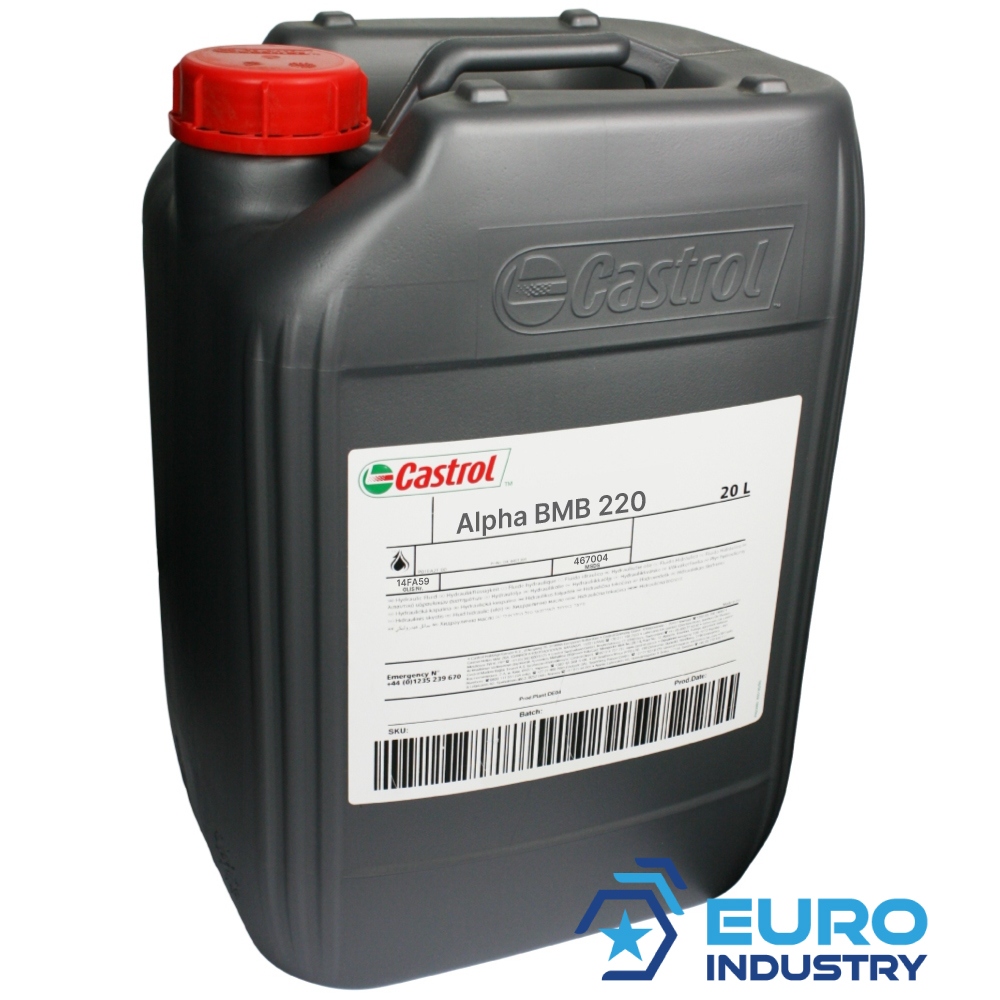

Castrol Alpha BMB 220 High-performance gear oil CLPF - 20L canister

Castrol Alpha™ BMB 220 is a high-performance gear oil (ISO VG 220) designed for use in heavy drives and applications where shock loads can occur. It is a 'CLPF type' gear oil containing Molybdenum Disulphidesolid lubricant additive, ensuring a stable suspension to deliver the highest load carrying efficiency over a broad load range.

• Pack size: 20 L canister
• Also available in: 208 L drum

Applications

• Designed for use in low-speed heavy drives.
• Ideal for applications where shock loads can occur.
• Provides emergency running properties and additional damping under vibration loads.
• Compatible with non-ferrous metals and commonly used seal materials.
• Delivers high thermal loading capacity, good ageing stability, and excellent protection against corrosion.

Specifications & Approvals

• DIN 51517-3 (Fulfills requirements)
• DIN 51502 CLPF type
• Compatible with non-ferrous metals and commonly used seal materials.

Benefits

• Very high shock and load carrying capability due to solid lubricant additive.
• Good resistance to ageing for extended oil life.
• High resistance to corrosion (Passes rust test in distilled water and synthetic seawater).
• Delivers excellent performance in the FZG Gear Scuffing test.

Technical specifications

Manufacturer number	14FA59
Grade	ISO 220
Density @ 15 C, kg/m³, ISO 12185	893
Kinematic Viscosity @ 40 C, mm²/s, ISO 3104	220
Kinematic Viscosity @ 100 C, mm²/s, ISO 3104	19
Viscosity Index, ISO 2909	90
Flash Point - open cup, °C, ISO 2592	230
Pour Point, °C, ISO 3016	-15
Copper corrosion (24 hrs@100°C), ISO 2160	1
FZG Gear Scuffing test - A/8.3/90, Failure Load Stage, ISO 14635-1	>12
Foam Sequence I - tendency / stability, ml/ml, ISO 6247	<50/0

Product Description

The Castrol Alpha BMB series are high-performance gear oils containing solid lubricant additive (Molybdenum Disulphide). They fulfill the requirements of the DIN 51517-3 specification and qualify as 'CLPF type' gear oils in accordance with DIN 51502 requirements. The Molybdenum Disulphide additive is carefully selected to be compatible with the base oils and other additives, ensuring that a stable suspension can be achieved to deliver the highest load carrying efficiency over a broad load range.

Castrol Alpha BMB220, Castrol Alpha BMB-220



Information on product safety (Manufacturer, Contact)

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
