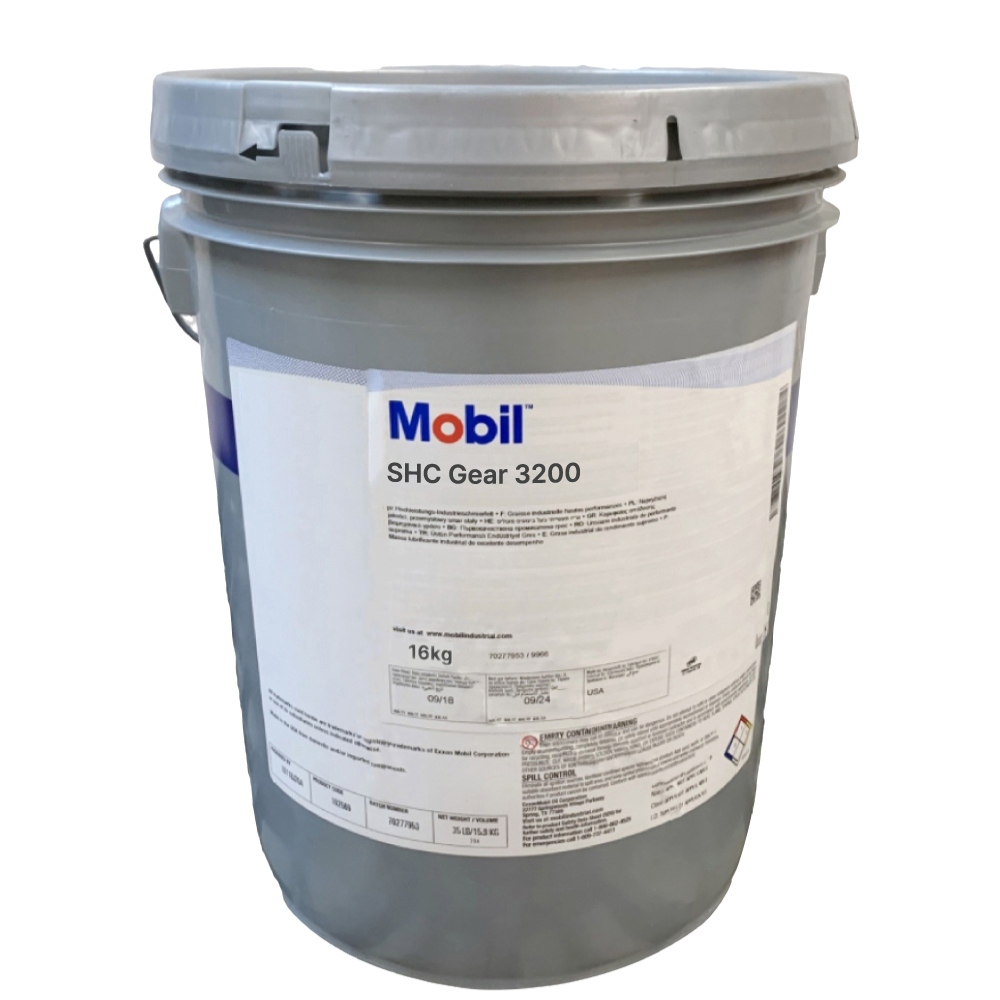

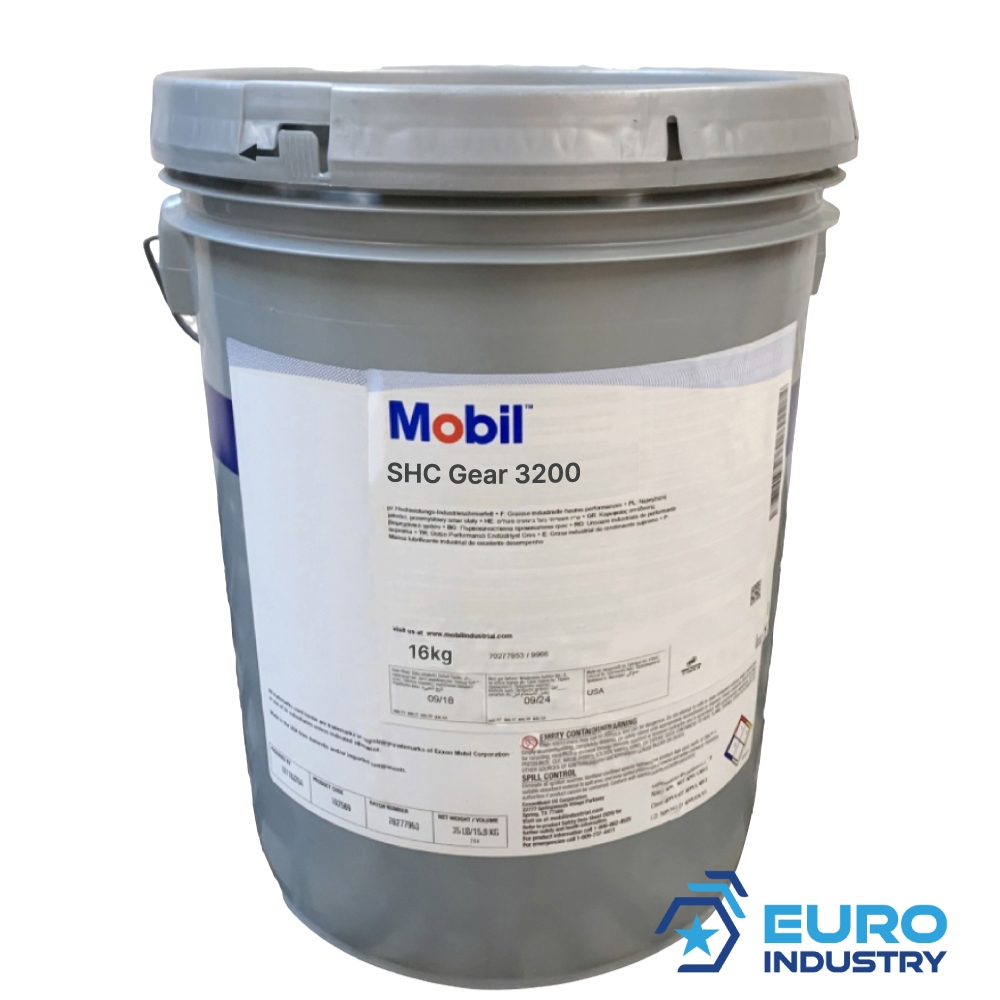

Mobil SHC Gear 3200 Heavy-Duty synthetic gear oil ISO VG 3200, 35lbs
€ 424.77 424.77 incl. VAT (356.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Mobil
Country of origin: US/0400
Customs tariff number: 34039900
Weight per piece: 18.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Mobil SHC Gear 3200 is a supreme performance heavy-duty synthetic gear oil (ISO VG 3200) designed for all kinds of enclosed gearing as well as plain and rolling element bearings.
- Pack size: 35 lb pail (~16 kg)
- Also available in: 390 lb (~177 L) drum
Applications
- All types of enclosed steel-on-steel gear drives (circulation and splash lubrication systems)
- Gear sets operating under heavy or shock loads and low speeds where boundary lubrication may prevail
- Industrial enclosed spur, helical and bevel gears, especially slow speed, and/or high load units
- Plain and rolling element bearings, especially in slow speed, and/or high load applications
- Railroad DC traction motor drives
- Certain open gear applications such as oiling pinions or specially designed circulation systems
Characteristics
- Outstanding load-carrying and antiwear properties helps extend gear life and reduce maintenance costs
- Very high viscosity grades available, without reduction of properties or performance capability
- Provides excellent EHL film protection of gears and bearings even at slow speeds, high loads and high temperatures
- Can be used to convert all-loss systems to circulation
- Can replace grease in some applications resulting in plant product consolidation
- High viscosity index for trouble-free operation over a wide temperature range particularly at extremely low temperatures
- Low traction properties can help improve gear efficiency and lower operating temperatures lead to lower operating costs
- Outstanding thermal/oxidation resistance and long product life helps reduce lubricant consumption and change-out costs
- Light color helps avoid need for gear cleaning prior to inspections, helping to reduce maintenance costs
Technical specifications
| ISO grade | 3200 |
| Copper Strip Corrosion, 3 h, 100 °C, Rating, ASTM D130 | 1B |
| Density @ 15.6 °C, kg/l, ASTM D1298 | 0.89 |
| FZG Scuffing, Fail Load Stage, A/8.3/90, ISO 14635-1(mod) | 13+ |
| Flash Point, Cleveland Open Cup, °C, ASTM D92 | 230 |
| Foam, Sequence I, Tendency/Stability, ml, ASTM D892 | 0/0 |
| Foam, Sequence II, Tendency/Stability, ml, ASTM D892 | 0/0 |
| Foam, Sequence III, Tendency/Stability, ml, ASTM D892 | 0/0 |
| Four-Ball Extreme Pressure Test, Load Wear Index, kgf, ASTM D2783 | 48 |
| Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2783 | 250 |
| Kinematic Viscosity @ 40 °C, mm²/s, ASTM D445 | 3200 |
| Kinematic Viscosity @ 100 °C, mm²/s, ASTM D445 | 183 |
| Pour Point, °C, ASTM D5950 | -9 |
| Rust Characteristics, Procedure B, ASTM D665 | PASS |
| Viscosity Index, ASTM D2270 | 165 |
Product Description
While the Mobil SHC Gear 1500, 3200, and 6800 are compatible with mineral oil based products, admixture may detract from their performance. Consequently it is recommended that before changing a system to one of these lubricants, it should be thoroughly cleaned out and flushed to achieve the maximum performance benefits.
Mobil SHC Gear 1500, 3200, and 6800 oils are recommended for all types of enclosed steel-on-steel gear drives. They are suitable for both circulation and splash lubrication systems.
EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 153446 |
