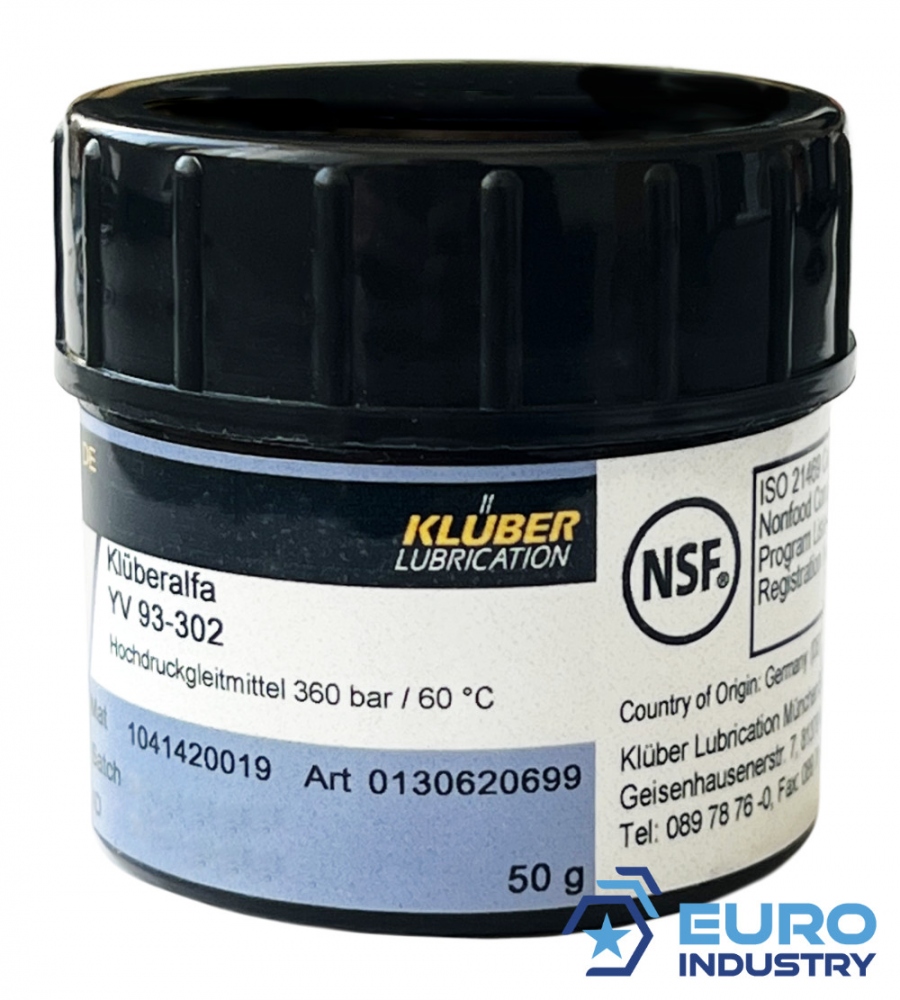

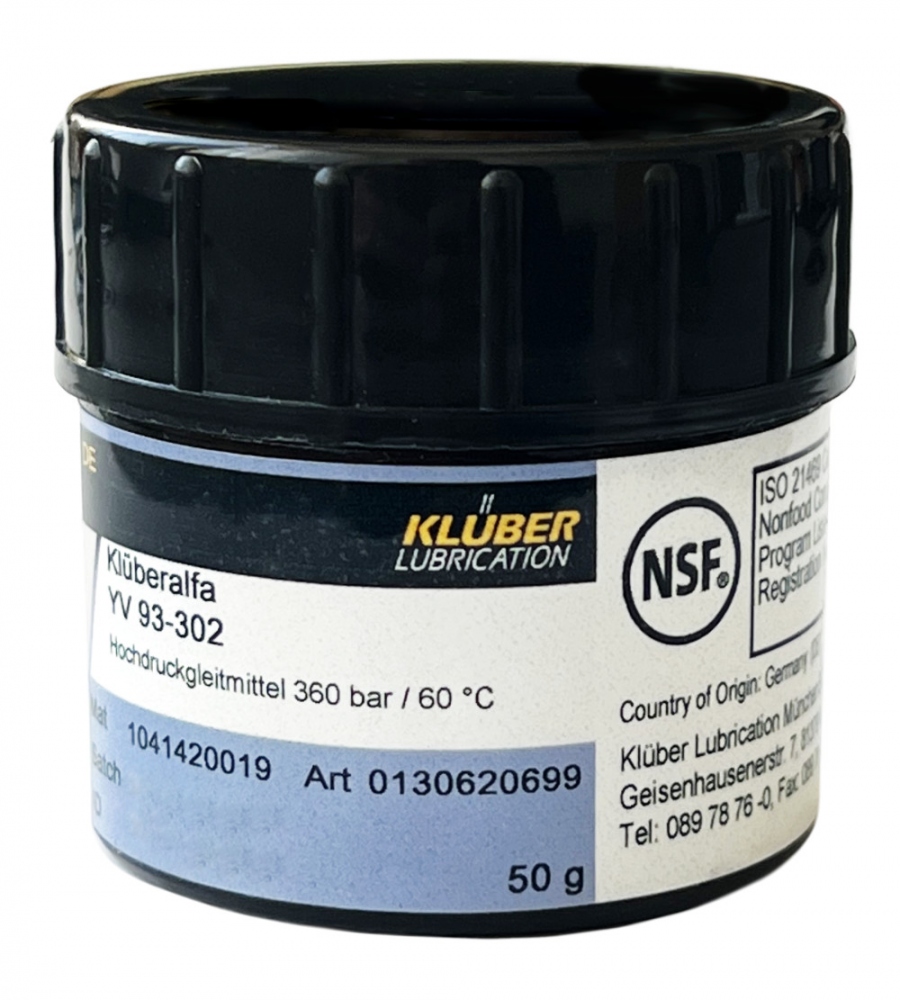

Klüberalfa YV 93-302 Sliding agent for valves and fittings 50g can

Klüberalfa YV 93-302 Sliding agent for valves and fittings 50g can

pics/Kluber/Copyright EIS/glas/kluberalfa-yv-93-302-kluber-sliding-agent-for-valves-and-fittings-ol.jpg
  • pics/Kluber/Copyright EIS/glas/kluberalfa-yv-93-302-kluber-sliding-agent-for-valves-and-fittings-ol.jpg
  • pics/Kluber/Copyright EIS/glas/kluberalfa-yv-93-302-kluber-sliding-agent-for-valves-and-fittings-l.jpg
  • pics/Kluber/Copyright EIS/glas/kluberalfa-yv-93-302-sliding-agent-for-valves-and-fittings-color-white-l.jpg
  • pics/Kluber/klueber_logo.jpg

248.53 248.53 incl. VAT (208.85 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 200 g

Please give the recipient email address, as well as your name and email address.

Recipient
Sender

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

The fields marked with (×) are required.
Security (ANTI-SPAM)
( Examples: two + three = 5, three - five = -2 )
Klüberalfa YV 93-302 Sliding agent for valves, fittings and installations carrying oxygen under high partial pressure | N° 013062
  • Klüberalfa YV 93-302 is a white high-pressure sliding agent based on perfluorinated polyether with solid lubricants having good wetting ability.
  • It offers good oxygen pressure surge resistance and good resistance to a very wide range of chemicals. To ensure continuous adherence to this high quality standard, Klüberalfa YV 93-302 is manufactured in small batches subject to strict hygiene requirements. Each batch is tested based on M 034-1 List of nonmetallic materials (213-075).
  • Temperature range: -60°C to +200°C
  • Volume: 50g can
  • Also available in: 1kg can, 100 g tube
Benefits for your application
  • Reliable operation of installations and components using gaseous oxygen due to
    • high oxygen pressure surge resistance (see product data)
    • good compatibility with most materials used in this branch of industry
    • wide service temperature range
  • Versatile sliding agent
    • for the industrial handling of oxygen, air, carbon dioxide, inert and other gases as well as their condensation products
    • NSF H1-registered for use in the food and beverage industries
  • Also suitable for installations and components carrying liquid oxygen
  • Each production batch checked for reactivity with oxygen
Applications
  • Klüberalfa YV 93-302 is used as a lubricant for valves, fittings and installations carrying gaseous and/or liquid oxygen or in chemical installations and equipment requiring high resistance to various gases. (Conclusion by analogy based on chemical composition. We recommend users conduct their own component tests under conditions as occur in practice).
  • The product's high pressure-absorption capacity and consistent friction values over a wide temperature range ensure constant actuation forces. Test results show the product's usability for an O2 content > 21 % by vol. under operating conditions specified in the product data section of this product information leaflet.
  • Possible applications are:
    • Oxygen valves
    • Peripheral aggregates of chemical installations –
    • Hose couplings, e.g. oxygen pipe connections, sliding and plain bearings, bolts, slideways, etc.
    • Steel and heavy industry
    • Assembly aid for most rubber-elastic materials and plastics
    • For industrial handling, maintenance and care of oxygen components
Application notes
  • All surfaces to be wetted must be thoroughly cleaned prior to product application. The application point must be clean and bright (i.e., free from oil, grease, dirt particles or perspiration).
  • For optimum lubrication effect, we recommend cleaning the surfaces with white spirit and then Klüberalfa XZ 3-1, ensuring residue-free surfaces when dried. For installations carrying oxygen, the application procedure must also be "oxygen clean" in order to attain a "ready for oxygen service" condition.
Technical specifications
 Chemical composition, type of oil PFPE
 Chemical composition solid lubricant
 Lower service temperature * -60 °C
 Upper service temperature ** 200 °C
 Colour space white
 Texture homogeneous
 Density at 20 °C approx. 2.00 g/cm³
 NLGI grade, DIN 51818 2
 Shear viscosity at 25 °C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value 5 000 mPas
 Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value 10 000 mPas
 Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C 1 - 100 corrosion degree
 Flow pressure of lubricating greases, DIN 51805-2, test temperature: -60 °C <= 1 400 mbar
 Four-ball tester, welding load, DIN 51350 pt. 04 >= 4 000 N


Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR,
Property GTIN/EAN MPN (Manufacturer Part Number)
- - 100070101
